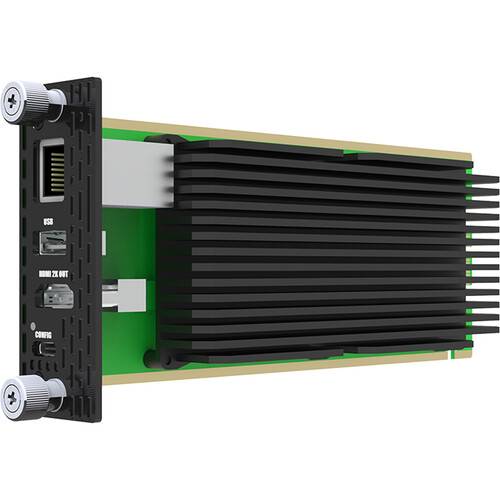

Magewell Pro Convert NDI to HDMI Module

The Pro Convert NDI to HDMI Module from Magewell decodes high-bandwidth 2K NDI streams and outputs video through HDMI up to 4K with its integrated upscaling feature. The hot-swappable module installs directly into the Magewell Modator 2 RU rack-mountable chassis, and its built-in interface allows control via the Modator's touchscreen. With eight-channel HDMI-embedded audio, a USB-C port for configuration, a USB-A port for peripherals, and very-low latency, this Pro Convert module is designed for professional AV applications.

Input and Output

• Decode high-bandwidth NDI streams in H.264 or H.265 video formats up to 2K60
• Upscaled video output up to 4096 x 2160 4:4:4 8-bit at 60 fps over HDMI
• Deliver preferred video format according to the EDID of the connected monitor
• Supports NDI|HX/HX2/HX3, RTSP, HTTP, HLS, RTMP pull/push, MPEG-TS over UDP/SRT/RTP, and TVU protocols
• 48 kHz 8-channel HDMI-embedded audio output

Connectivity

• RJ45 1000 Mb/s Ethernet port
• HDMI 2.0 video output port
• USB-C configuration port
• USB-A port for connecting peripherals
• Modator 2 RU interface for control
