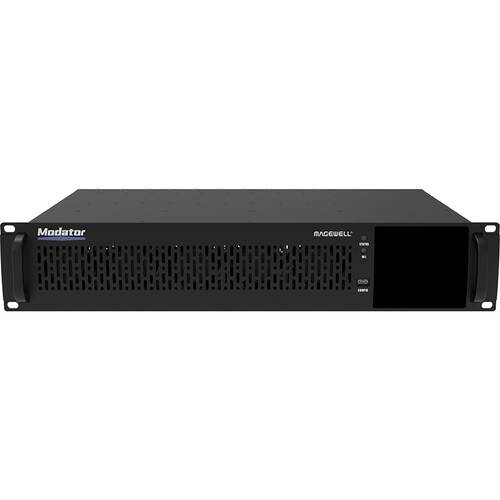

Magewell Modator 2U Rack-Mountable Chassis

The Magewell Modator 2U is a robust, rack-mountable modular chassis designed for professional AV systems. Supporting up to 10 independent, hot-swappable Modator modules, it delivers encoding and decoding for IP video workflows. Its dual redundant power supplies and advanced heat dissipation ensure reliable, continuous 24/7 operation. The intuitive LED touchscreen panel allows users to monitor system status, manage settings, and quickly troubleshoot.

With a sleek 2U form factor, the Modator is designed for standard rack deployments. The built-in browser-based web UI provides easy access for remote management, while HTTP-based APIs support custom integrations. Whether used for live event production, broadcasting, or corporate video distribution, the Modator 2U offers the flexibility and reliability necessary for professional AV networks.

Performance

• Supports up to 10 hot-swappable modules
• Independent encoding and decoding modules
• Dual redundant power supplies for 24/7 operation
• Efficient heat dissipation for long-term stability

Control

• LED touchscreen panel for real-time status monitoring
• Power management and error notifications
• Browser-based web UI for remote access and management
• HTTP APIs for easy integration with external systems

Connectivity

• One RJ45 1000 Mb/s Ethernet port for network integration
• One USB-C port for configuration
• Compatible with Pro Convert NDI to AIO, NDI to HDMI, HDMI Plus, and HDMI 4K Plus modules

EAN: 0814395021515
