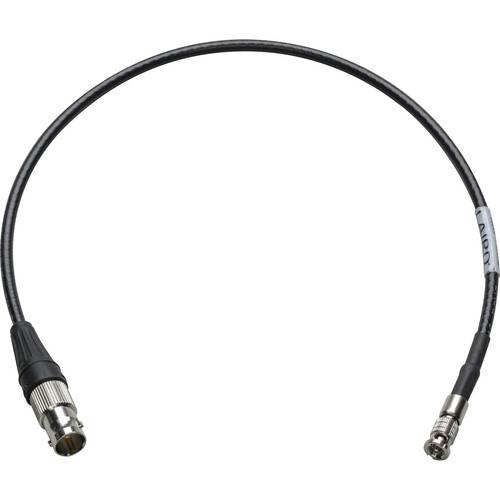

Laird Digital Cinema High-Density HD-BNC Male to BNC Female 12G-HD/SDI Cable (3')

Laird Digital Cinema High-Density HD-BNC Male to BNC Female 12G-HD/SDI Cable (3') Overview

Product highlights and buying context

Read More

Additional Details

• The 3' High-Density HD-BNC Male to BNC Female 12G-SDI Cable from Laird Digital Cinema enables you to transmit uncompressed 12G-SDI/UHD 4K video signals in applications where RF performance is critical.
• Designed with improvements in return loss and attenuation, this cable is highly suitable for use with high-density jackfields, routers, and signal distribution systems.
• One end of the cable features a low-profile coax HD-BNC (micro BNC) male connector and the other end a standard BNC female connector.
• The HD-BNC connector uses bayonet-style mating analogous to traditional BNCs for a reliable coupling.
• The cable is made with Belden low-loss 4855R coax cabling rated for 12G-SDI signals.
• Braid design, silver-plated copper conductor plus a new polyethylene formula contribute to significant return loss and attenuation improvement 15 dB return loss from 4.5 to 12 GHz
