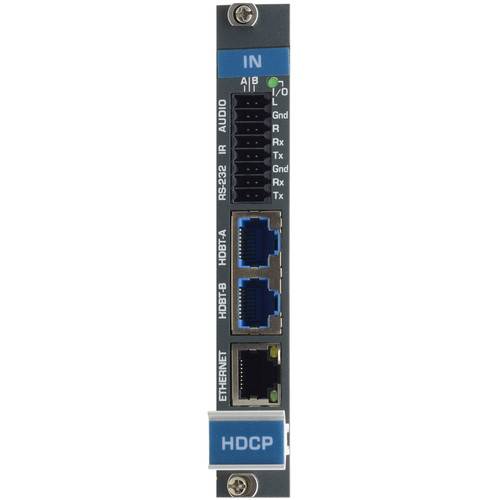

Kramer 4-Channel 4K60 4:2:0 HDMI Audio HDBaseT Input Card

DTAxr-IN4-F32 is a four-channel 4K60 4:2:0 HDMI, analog audio, bidirectional RS-232, Ethernet, and IR over HDBaseT twisted pair receiver card for the VS-3232 series modular multi-format digital matrix switchers. The DTAxr-IN4-F32 inputs four extended-reach HDBaseT signals with selectable embedded/de-embedded analog audio, bidirectional RS-232, Ethernet, and IR from the line to the chassis.

• Data rate: up to 10.2Gbps (3.4Gbps per graphics channel)
• Resolution: up to 4K at 60Hz (4:2:0)
• Analog audio embedding/de-embedding: on the same jack
• HDBaseT technology: HDTV compatible, HDCP compliant
• System range: up to 100m at normal mode (4K), up to 130m at normal mode (2K), up to 180m at ultra mode (1080p at 60Hz)
• Bidirectional RS-232 extension and infrared extension
• Ethernet extension
• 3D pass-through

EAN: 7291063085469
