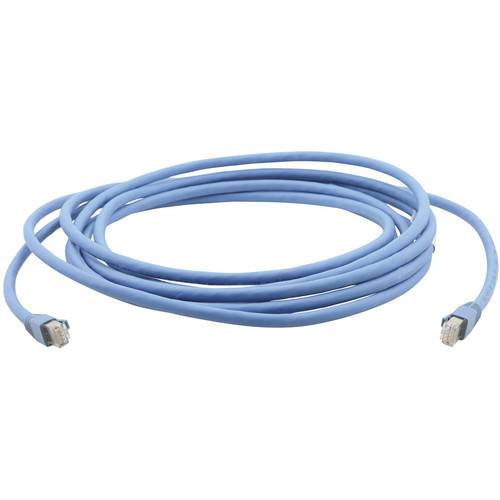

Kramer 125' CAT6a HDBaseT Cable (Blue)

Connect your HDBaseT-compatible equipment with the blue 125' Kramer CAT6a HDBaseT Cable. It features gold-plated RJ-45 connectors to help resist corrosion and enhance data transfer speeds.

• Conductors: 4 x 2 x 23 AWG, annealed copper
• Conductor Outer Diameter: 0.56 ± 0.01mm
• Insulation Material: Skin/foam/skin HDPE
• Insulation Outer Diameter: 1.33 ± 0.1mm
• Color: Per TIA/EIA 568-B
• Screening: Alu/PET per pair (Alu side out)
• Drain Wire: 90% tinned copper
• Drain Wire Outer Diameter: 0.4 ± 0.01mm
• Jacket: LSHF, blue RAL5012

• Maximum Pulling Tension: 100 N
• Bending Radius: Installation 2.36", Installed 1.97"
• Operation Temperature: -4 to 140°F
• Storage/Transport/Installation Temperature: 32 to 122°F

• Impedance at 1 to 100 MHz: 100 ± 15 Ohms
• Impedance at 100 to 250 MHz: 100 ± 20 Ohms
• Impedance at 250 to 500 MHz: 100 ± 50 Ohms
• Propagation Velocity: 76%
• Capacitance Unbalanced Pair/Ground: ≤1500 pF/km
• Pair Resistance Unbalance: DC <1.5%
• Dielectric Strength: 2.5 kVDC (2s)
• Insulation Resistance: >5000 MOhms/km
• Voltage Rating: 30V

• Over four individually screened twisted pairs, this U/FTP CAT6a cable runs Kramer's DGKat technology, 4K HDBaseT technology, or LAN applications
• Designed to ensure optimum signal performance
• 23AWG solid copper conductors are cabled together in an unshielded outer jacket
• Engineered for optimized use with Kramer's DGKat and HDBaseT hardware
• Shielded RJ-45 connectors with 50u gold-plated contacts

EAN: 7291063081386
