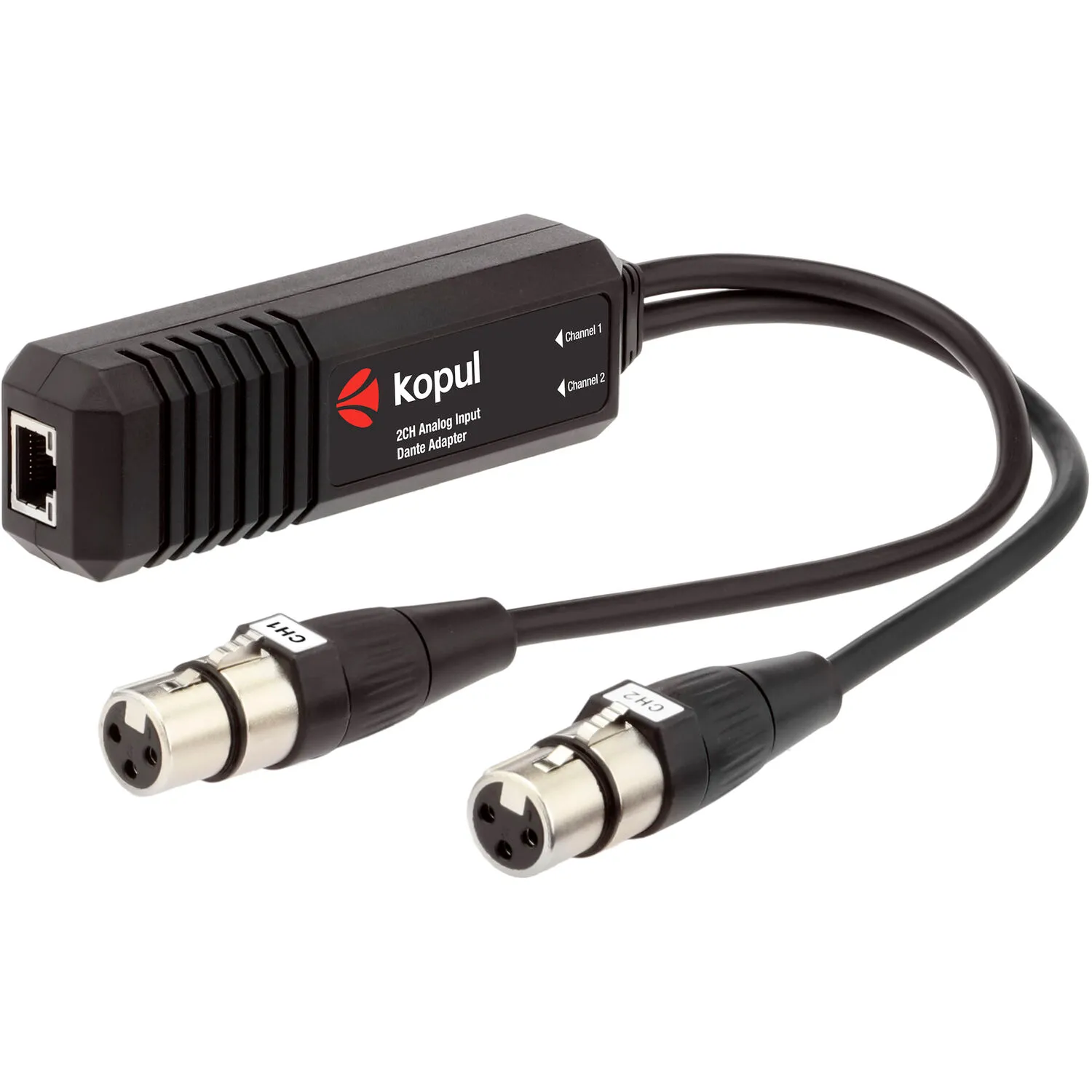

Kopul DAN-AIXF2 Two-Channel XLR Analog Input Adapter for Dante Network

The Kopul DAN-AIXF2 Two-Channel XLR Analog Input Adapter for Dante Network enables you to incorporate analog audio gear you already own into your Dante network. With plug-and-play operation, the DAN-AIXF2 is automatically discovered by the network and ready to use once connected, making it easy to send highly detailed and clock-accurate audio to an analog mixing board, power amplifier, or powered speakers over Dante.

The DAN-AIXF2 connects to the network via its RJ45 Ethernet port. You can input two balanced, line-level analog audio signals from a keyboard, DI box, or mixing board via its two 3-pin, XLR-F connectors. The adapter delivers two channels of high-quality audio with up to 24-bit / 96 kHz A/D conversion, high SNR, low THD, and a wide frequency response of 20 Hz to 20 kHz.

The DAN-AIXF2 is PoE powered. It supports Dante Audio over IP and AES67 RTP transport formats and is compatible with Dante Domain Manager (DDM).

At a Glance

• Cost-effective solution for adapting analog gear to your Dante network
• Convert two channels of analog audio into Dante audio
• 2 balanced, line-level analog audio signals on 3-pin, XLR-F connectors
• Plug-and-play operation
• Rugged ABS construction
• A/D conversion up to 24-bit / 96 kHz
• Wide dynamic range
• High Signal-to-Noise Ratio (SNR)
• Low Total Harmonic Distortion (THD)
• Dante Audio over IP and AES67 RTP transport formats
• Powered via Power-over-Ethernet (PoE)
• Compatible with Dante Domain Manager (DDM)

Simple Plug-and-Play Operation

• Simply connect the DAN-AIXF2, and it’s instantly discovered by the network.
• Let the Dante Controller do the rest of the work like signal routing, configuring gain, attenuation, and enabling channels.

Road Ready

• The DAN-AIXF2 features a rugged ABS shell designed to withstand repeated transport in a toolbox or gear bag, and the stress of constant touring.
• The XLR cables feature molded strain relief that minimizes cable strain at the point where the cable connects with the adapter.

A Multitude of Applications

• Send analog audio from a keyboard, DI box, microphone, and mixing board to your Dante network
• Patch DSPs, analog compressors, and equalizers into a Dante system using a combination of Kopul Dante input and output adapters
• Create easy drop points for connecting overflow areas to a Dante network
• Send audio to multiple rooms in houses of worship, conference centers, theaters, and studios via Dante network
• Connect hearing-aid loop amplifiers to your Dante audio network
