Key Digital KD-IP922DEC-II 4K AV over IP System Decoder with PoE and Open API Control Ports

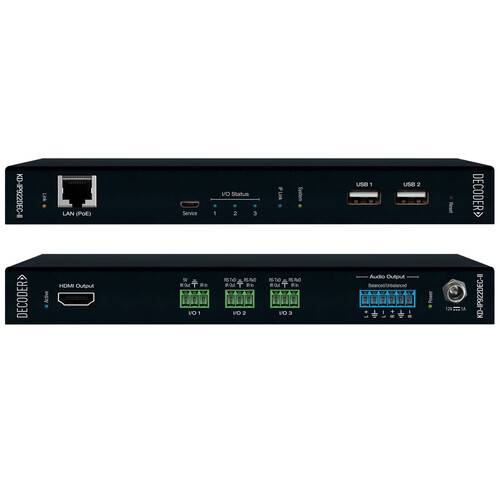

The KD-IP922DEC-II 4K AV over IP System Decoder with PoE from Key Digital features PoE (power over Ethernet), low latency, scaling, support for up to DCI 4K30 video, and audio de-embedding. Designed for use with a verified network switch, this app-ready decoder can be mixed-and-matched with KD-IP822 and KD-IP922 encoders and decoders to create up to 16x16 video walls with a maximum total of 256 displays. Interfaces include one GbE LAN input port, one HDMI output, one 6-pin block audio output, two USB-A ports for routing KVM devices, and three 3-pin block control ports.

• Ready to use the Key Digital app
• Performs a network scan to detect and populate a pre-built GUI
• Includes optional image preview, finger-drag video wall management
• Offers source and display IR control of popular devices

• Use with the KDMS Pro PC software for unit and system setup
• Offers a control UI with a clean end-user mode option
• Includes optional image preview, mouse-drag video wall management
• Provides IR and PJ link source and display control of popular devices

• Offers 12-bit, 4:4:4 UHD 4K30 HDR (high dynamic range) for AppleTV sources
• Enables more lifelike images with a greater range of luminance levels
