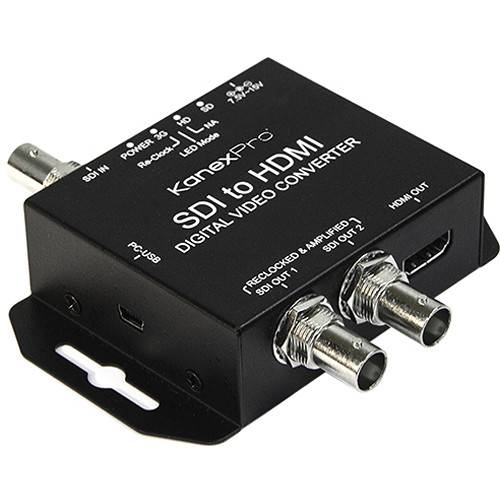

KanexPro SDI to HDMI & Dual SDI Converter with Signal EQ and Re-Clocking

Compact and all-metal, the Kanex Pro SDI to HDMI & Dual SDI Converter is a rugged, mobile monitoring solution for broadcasting, surveillance, and other professional applications. It converts a single 3G/HD/SD-SDI input to an HDMI output and also provides dual 3G/HD/SD-SDI loop outputs backed with signal equalization and re-clocking. It supports up to 1080p60 resolution and auto-detects the input signal and converts it to the correct output format.

• Compact, all-metal
• 3G/HD/SD-SDI input to HDMI and dual 3G/HD/SD-SDI outputs
• Supports up to 1080p60 resolution
• Signal equalization and re-clocking
• Auto-detects the input signal
• Auto-switches between 3G, HD, and SD-SDI standards
• 2-channel audio
• Supports conversion to SMPTE 425M Level A, 1080p50/59.94/60, 4:2:2, 10-bit
• Supports cascading of multiple SDI signals in application
• Locking power supply
• Integrated mounting ears
• 3-pin dip switch (Re-clock/LED mode/NA)
