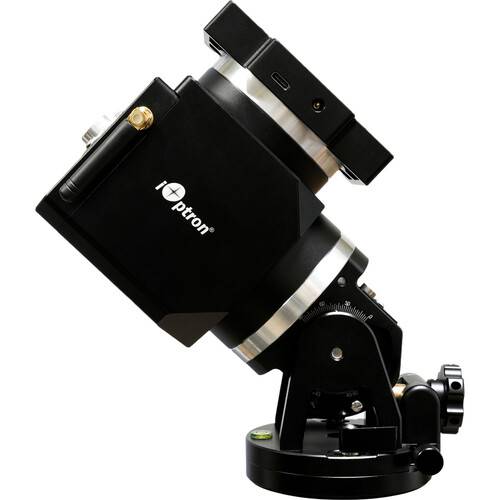

iOptron HAE18C AZ/EQ Dual Strain Wave Mount

Small and light but capable of supporting 18 pounds of gear with no counterweight, the HAE18C AZ/EQ Dual Strain Wave Mount from iOptron offers go-to telescope tracking in a highly compact form factor. The mount employs the torque and precision of strain wave drive for both the right ascension and declination axes. Power and USB cables plug in to the non-moving base and saddle to avoid tangling and a friction brake on the RA axis provides a safe, controlled stop even if the mount loses power. Install an optional counterweight and shaft and the OTA and accessories capacity rises to 26.5 pounds. Upgradeable firmware, built-in Wi-Fi, and a zero position locating feature make the HAE18C a solid choice for observation and imaging.

• Applies advanced strain wave drive to RA and Dec axes
• 360-second gear period
• Payload capacity of 18 pounds with no counterweight, increases to 26.5 pounds with optional counterweight and shaft
• Sturdy CNC-machined all-metal housing
• Friction brake to safely stop movement during a planned or unplanned power interruption
• Built-in zero position search and locator
• Stationary power and USB inputs eliminate tangled cables
• USB-C ports for firmware upgrade and computer control
• Built-in Wi-Fi
• Supports optional Go2Nova 8411 handset with OLED display
• Supports iOptron Commander, ASCOM, and INDI
• Vixen dovetail saddle
