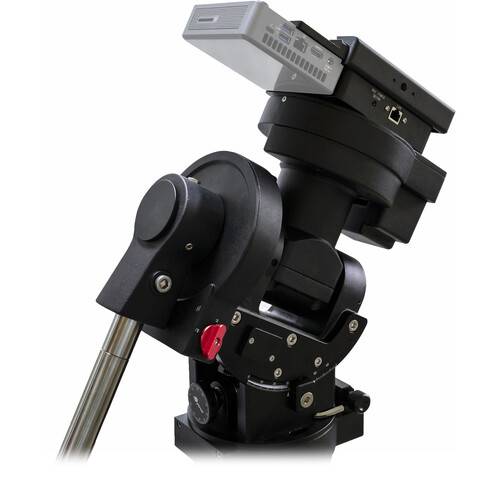

iOptron CEM70EC-NUC Mount Head with iPolar Scope

The iOptron CEM70EC-NUC Mount Head is a NUC-ready mount that provides the versatility of an equatorial mount. It's ready to mate with an Intel NUC minicomputer (≤38mm thickness) at the front of the dovetail saddle seamlessly thanks to the advanced cable management system. With precise GOTO pointing and accurate tracking, the CEM70EC2-NUC is suitable for observers and imagers alike. It offers advanced operational features such as the internal iPolar electronic polar scope, easy lock drive gear engagement (with levers large enough to use with gloves), cable management for the mount, and much more.

Note:

The included AC adapter is for indoor use only.

• Center-balanced equatorial mount (CEM) for maximum payload with natural stability
• Suitable for visual observation and astrophotography
• Payload of 70 lb with the mount weight of 30 lb
• Easy-to-use gear clutches
• Precision altitude and azimuth adjustment
• Precision stepper motor with 0.07 arcsec accuracy for precise GOTO and accurate tracking
• iPolar electronic polar scope
• Go2Nova 8407+ V2 controller with Advanced GOTONOVA GOTO Technology with a built-in heater
• High-precision tracking with low periodic error (PE <0.3 arcsec rms)
• Dual-axis real-time periodic error correction (RPEC)
• 32-channel GPS
• USB connection
• Integrated ST-4 autoguiding port
• Advanced cable management system for mount and NUC
• Spring-loaded 8" Vixen/Losmandy dual saddle with NUC mounting adapter
• TheSky Imaging Edition software for Windows and macOS

• 2.33 payload/mount weight ratio
• All-metal construction
• Azimuth adjustment: ± 4°
• Right Ascension worm wheel: 151mm diameter, 248 teeth
• Declination worm wheel: 151mm diameter, 248 teeth
• Worm: 21.2mm diameter
• Right Ascension axle: 55mm diameter, steel
• Declination axle: 55mm diameter, steel
• Right Ascension bearings: 80mm diameter
• Declination bearings: 80mm diameter
• Mount base size: 152mm diameter
• Precision stepper motor (128 micro-step)
