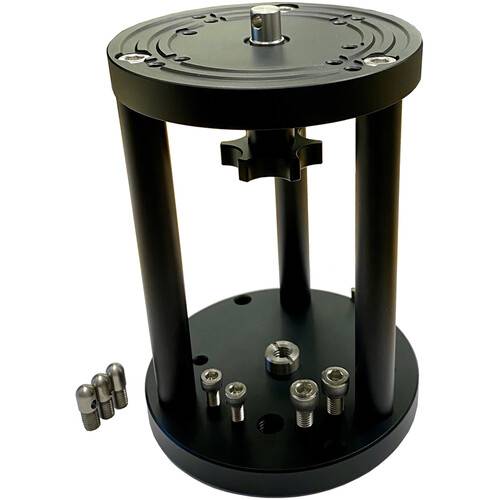

iOptron 7" MiniPier for Small to Medium GoTo Mount

This 7" MiniPier provides some extra height for iOptron telescope mounts that require additional clearance and lifts long OTAs higher for easier viewing. The CNC-machined aluminum mini-pier has three holes in its bottom plate for leveling on the 8061A carbon fiber tripod. The MiniPier is not compatible with the Tri-Pier 360/360A or the Permanent Pier.

• HAZ31/46 (3/8"-16 locking knob)
• CEM26/HEM27/GEM28/HAE29 (two M6 screws, 83mm separation, one center post)
• CEM40/HAE43/HEM44/GEM45 (two M6 screws, 103mm separation, one center post)
• HEM15/HAE16/HAE18 ultra compact strain wave gear mount (3/8"-16 locking knob)
• SkyTracker Pro/SkyGuider Pro (3/8"-16 locking knob)
• SkyHunter (3/8"-16 locking knob)
• Camera and other equipment with a 3/8"-16 mounting hole

• Carbon fiber tripod (8061/8061A)
• CEM26/GEM28 tripod (two M6 screws, 83mm separation)
• CEM40/GEM45/iEQ30 tripod (two M6 screws, 103mm separation)
• CEM70/CEM60/iEQ45 tripod (two M8 screws, 120mm separation)
• CEM25/ZEQ25 tripod (3/8"-16 thread adapter)
• 3211 SmartEQ/SGP/STP/SkyHunter tripod (3/8"-16 thread adapter)
• Tri-pier (M6 and M8 screws)

• Other tripod with 3/8"-16 mounting screw or threaded mounting holes matching the plate mounting holes
