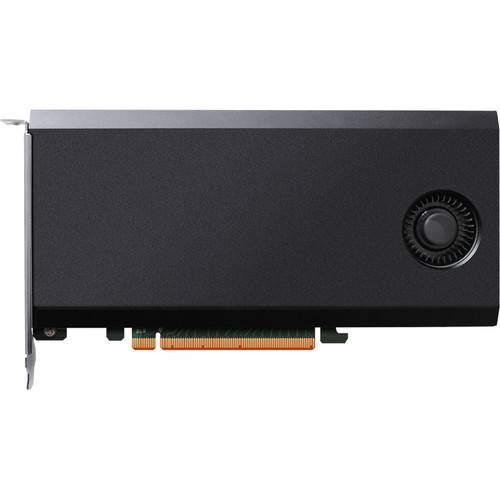

HighPoint SSD7101A-1 M.2 NVMe RAID Controller

Boost your computer system's storage speed and security by installing the HighPoint SSD7101A-1 M.2 NVMe RAID Controller into an available PCIe 3.0 x16 slot. Up to four M.2 PCIe NVMe solid state drives can be installed into the controller in RAID 0, 1, 10, Single, or JBOD configuration to deliver up to 14 GB/s of performance. Integrated Smart-Switching technology allocates 4x dedicated lanes to each drive to help ensure optimal transfer speeds. HighPoint's Cross-Sync technology allows you to configure two SSD7101A-1 NVMe RAID controllers to function as a single array, delivering up to 28 GB/s for demanding tasks such as 8K video editing. The RAID controller works with Windows, MacOS, and Linux-based systems.

HighPoints NVMe hardware architecture takes full advantage of PCIe 3.0 x16 bandwidth and uses Smart-Switching technology to optimize performance and deliver up to 14 GB/s of throughput.

Two SSD7101A-1 NVMe RAID controllers with up to eight SSDs can be configured to work as a single array to transfer data at up to 28 GB/s.

The SSD7101A-1 RAID controller includes a web-based management interface to monitor, configure, and fine-tune your RAID array.

MacOS 10.14 and later users can individually track the temperatures of each NVMe SSD through the HighPoint management interface. Select from three different speed settings or turn the fans off completely for silent operation.
