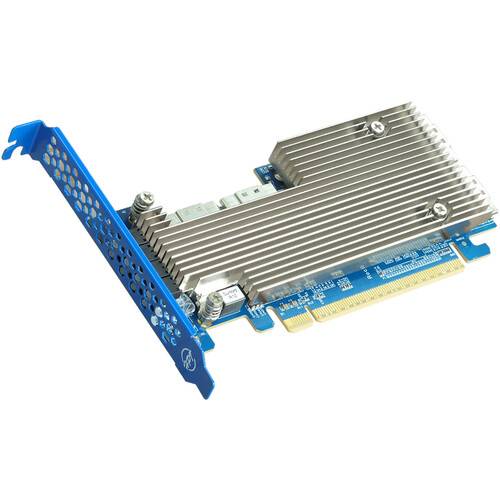

HighPoint Rocket 7528D PCIe Gen4 x16 to 4-SlimSASx8 NVMe RAID Adapter

Designed for professional storage applications, the Highpoint Rocket 7528D PCIe Gen4 x16 to 4-SlimSASx8 NVMe RAID Adapter provides optimal storage performance with the flexibility of proven RAID technology. This adapter supports Single, RAID 0, 1, & 10 modes, as well as TRIM RAID. This adapter provides up to 32 GB/s of transfer bandwidth. The four SlimSAS (SFF-8654) ports can directly support up to eight U.2 or U.3 NVMe SSDs and cable connections to SFF-8639 or SFF-8654/SFF-1016 UBM and VPP compliant backplanes. This adapter complies with the LP-MD2 specification, thanks to its compact form factor. With true hot-plug/hot-swap support, you'll be able to add and remove SSDs while the host platform remains active. The integrated OOB (out-of-band) management can streamline service and maintenance workflows.

Comprehensive storage health monitoring and management suite

Industry-proven NVMe RAID technology supports up to four RAID 0, 1, or 10 configurations

Optional Boot-RAID for Linux and Windows

Eight dedicated PCIe 4.0 device channels

Directly supports up to 8x U.2/U.3 NVMe SSDs via SlimSAS SFF-8654 ports and industry standard backplane connectivity

High-performance 48-lane Gen4 switch architecture with x16 lanes of dedicated upstream and x4 lanes of downstream bandwidth for each device channel

Delivers 32 GB/s of bandwidth and real-world sustained transfer speeds of up to 27,000 MB/s

Integrated NVMe hot-plug and hot-swap capability

PCIe Gen 4.0 Hyper-Cooling solution

Hardware secure boot
