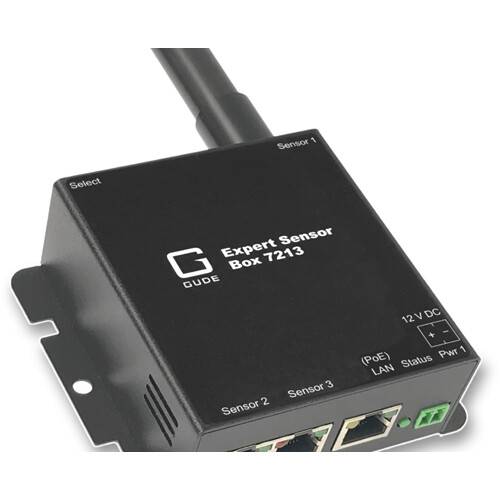

GUDE Systems LAN Temperature, Humidity, and Air Pressure Sensor for Environment Monitoring

Track temperature, humidity, and air pressure in your IT installations over TCP/IP networks with the LAN Temperature, Humidity, and Air Pressure Sensor for Environment Monitoring by GUDE Systems. It is powered through PoE or DC input. Two RJ45 Ethernet ports connect to separately available GUDE temperature, humidity, or air pressure sensors. The unit proactively monitors power. Activate the network time protocol function to synchronize your computer systems' clocks. The integrated mounting bracket easily attaches to a DIN rail. Enjoy professional performance and longevity from a steel housing.

• 1 x connector for external power supply (industrial clamp, 2-fold)
• 2 x RJ45 sensor connectors for optional temperature, humidity, air pressure sensors
• 1 x RJ45 Ethernet connector (10/100 Mb/s)
• Power supply also via PoE

• 1 x switchable, potential-free relay output with changeover contact connection (NO and NC)
• High switching capacity 36V, 3A
• Switching if relay outputs possible depending on sensor thresholds or inputs
• Relay has high contact reliability even with very small loads
• Self-healing function thanks to 1-channel watchdog: each power port can be assigned its own Watchdog (ICMP/TCP), which initiates an automatic restart if necessary

• 2 x connectors for combined plug-and-play sensors (temperature, humidity and air pressure) to prevent frequently occurring physical hazards such as overheating and increased humidity or air pressure
• Additional power supply via PoE
• Generation of status messages and alarms (email, syslog, SNMP traps MQTT, SSH, Telnet)
• Encrypted emails (SSL, STARTTLS)
• Access protection by IP access control
• Encrypted communication through SSL (TLS 1.1, 1.2, 1.3) and SSH
• Password protected access

• Firmware update via Ethernet during operation (no restart required)
• Simple and flexible configuration via web browser, Windows or Linux program
• Dynamic assignment of an IP address via DHCP or manual assignment of static IP address
• Rapid commissioning thanks to free and reliable drivers from our technology partners
• Mounting on DIN rail thanks to mounting clip
• Robust sheet steel housing with versatile mounting options

EAN: 4250493100626
