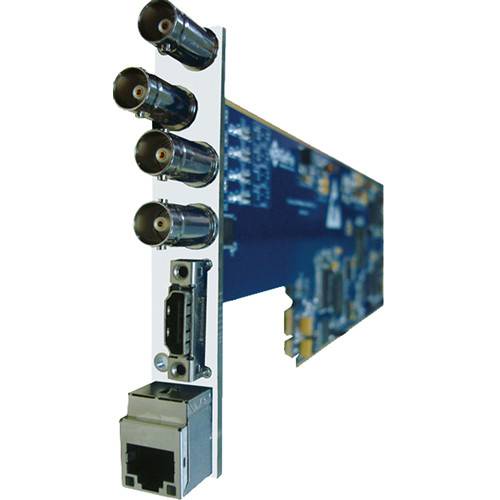

Gra-Vue XIO 9900MVS-OUT Output Card of Multi-Viewer System

The Gra-Vue XIO 9900MVS-OUT Output Card of Multi-viewer Systemis based on the XIO series processing platform. It provides 4 HD/SD-SDI input signals, and auto detection of input format. It can output 1 HDMI output signal with an output resolution of up to 1920 x 1200, which provides high-definition and fluent image. With a built-in Web server, display elements can be conveniently and rapidly configured on the web page via the RJ-45 interface.

The output card features signal routing. When there are more than 2 output cards (including 2 cards) inside the XIO frame, all the HDMI outputs share the entire signal source, and any signal can be routed to display on any output freely.

Supports input format of 525i 59.94, 625i 50, 720p, 1080i, and 1080p, and auto detection of input format

Supports HD/SD-SDI signal with non-embedded or embedded audio signal

Outputs 1 HDMI signal with output resolution up to 1920 x 1200

Adopts HDMI interface with fixed socket to avoid the HDMI cable falling off from the board

Embeds audio into HDMI signal and the audio source can be selected via the Web server

Flexible output options with 4:3, 16:9, customized aspect ratio

Supports display of input format and AFD information

Editable dual program UMD and 4-channel audio meters display

Signal can be routed to flexibly and conveniently display on any output by configuration on the Web server

Video/audio auto detection and alarm, such as video loss, video freeze, video black, audio silence, audio overload with high rate of accuracy

Selectable air timer and countdown timers, analog and digital clocks types

Supports customized layout to preset various layouts for different applications, such as studio, OB van, production room and so on
