Gra-Vue XIO 9900MVS-OUT HD/SD-SDI Output Card for Multi-Viewer (3RU)

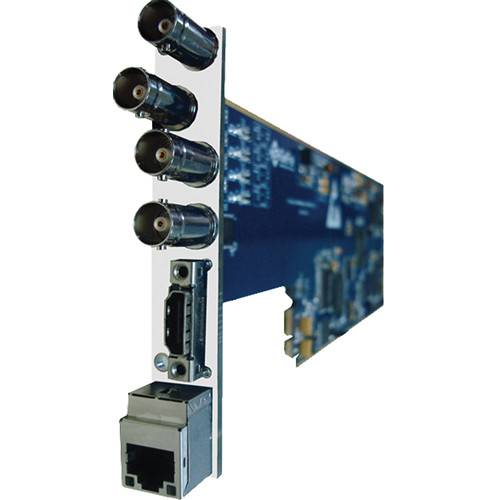

The XIO 9900MVS-OUT HD/SD-SDI Output Card for Multi-Viewer from Gra-Vue is a modular board that installs inside the 3RU version of the XIO rackmount frame. The card combines video from up to four SD-, HD-, or 3G-SDI sources and outputs them on a single HDMI connection at up to 1920 x 1200 (WUXGA) resolution. Along with presets, custom multi-view layouts are possible, and various used-defined graphical overlays can be applied. When two or more cards are used in a single frame each HDMI output will be aware of all of the SDI inputs in the entire system, making it possible to add routing functionality to your multiview application.

The card features an Ethernet port and built-in Web server so that it can be configured an operated remotely across a local network or even over the Internet. It is suitable for a wide range of A/V, digital signage, video production, and broadcast applications.

Supports 525i, 625i, 720p, 1080i, and 1080p input formats and feature automatic input detection

Pass two selectable channels of SDI-embedded audio to the HDMI output

HDMI port features threaded sockets so that locking HDMI cables may be used to avoid accidental disconnection

Flexible output options: 4:3, 16:9, and custom aspect ratios may be selected

Can display overlay of input format along with AFD information

Editable dual program UMD and four-channel audio meters display

Supports video/audio auto detection and alarming for events such as video loss, frozen video, black video, audio silence, and audio overload

Selectable air timer and countdown timers, with analog and digital clocks types

Supports customized layouts to suit different applications, such as studio, OB van, production room and more
