GOAL ZERO 20 kWh Haven Home Backup

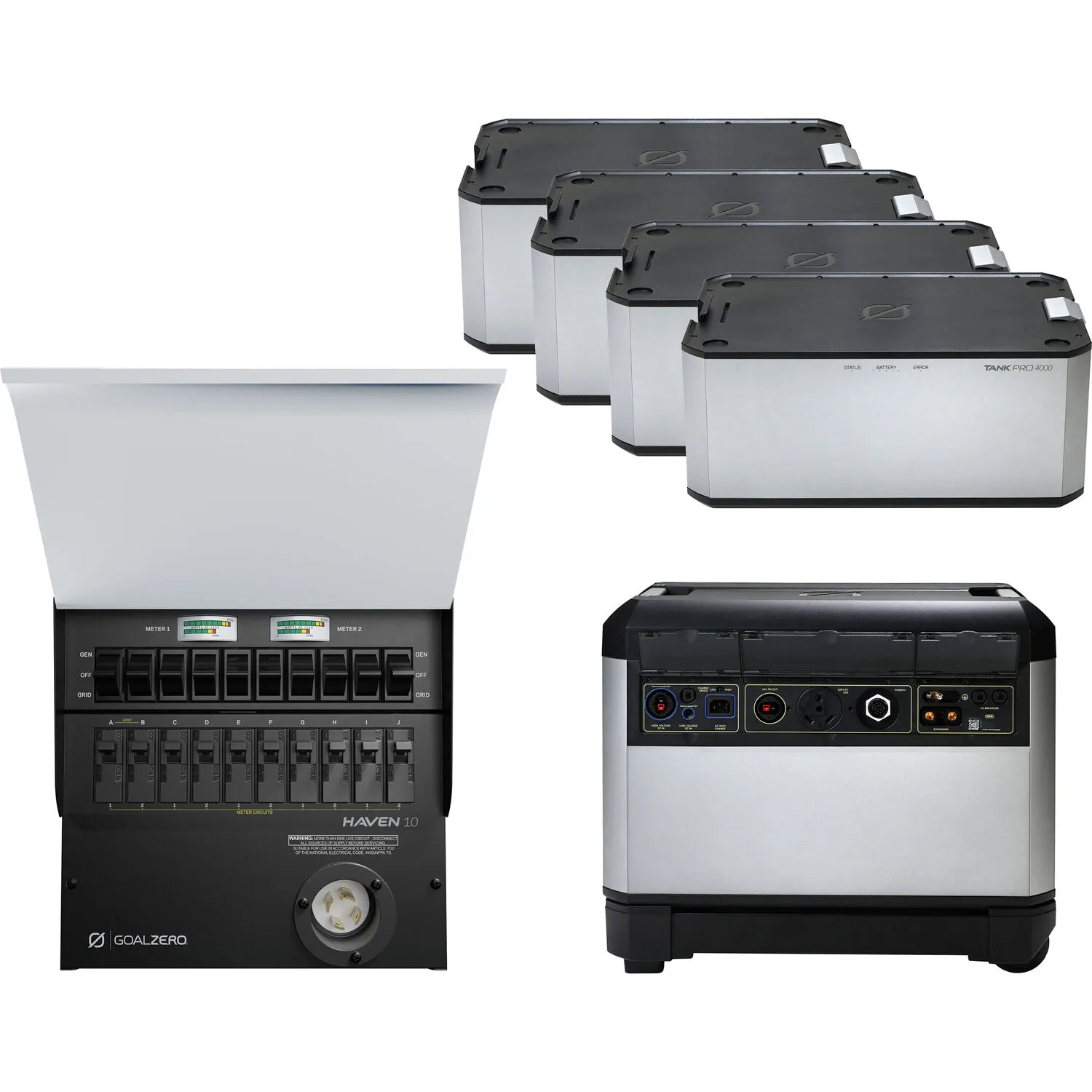

The 20 kWh Haven Home Backup from Goal Zero is designed to seamlessly run your essential devices and appliances during a power outage, or the system can be disconnected and made mobile for use where you need it most. This system includes the Yeti PRO 4000 power station, four Tank PRO 4000 batteries, and a Haven 10 transfer switch to back up your home's breaker box. When connected to your home, the entire system can automatically switch over in under 10ms, using its combined 20 kWh of capacity to power up to ten 120V home circuits. The robust design of this system, with lithium iron phosphate (LiFePO4) battery technology, provides 4000+ recharge cycles for years of operation.

The Tank PRO 4000 Expansion Battery from Goal Zero adds increased energy storage capacity to the Yeti PRO 4000 portable power station and creates a robust backup system that can run household essentials for days on end. The modular design of the system makes it easy to add more power and it can be charged using an AC power source or compatible solar panels. As part of this home backup system, you get four Tank PRO 4000 batteries, which seamlessly integrate with the Yeti PRO 4000 power station. With each battery designed to have a 4000-cycle lifespan, this combination can give you years of home power protection.

The Haven 10 transfer switch is the key component to turning this system into a whole-home backup power solution. Installed in conjunction with your home's circuit breaker, the Haven 10 can cover 10 of your 120V home circuits, offering six 15A and four 20A breakers for a total of 7500W of power output throughout your home. Together with the Tank PRO 4000 batteries and Yeti PRO 4000 power station, your essential devices and appliances can switch over to backup power in less than 10ms when the power goes out.

• AC fast charge: 1800W (90V-144V, up to 15A)
• Power+: 3000W (90-254V, 30A)
• HPP high voltage input: 3000W max (13.3-150V, up to 40A)
• 8mm low voltage input: 275W max (12.3-28V, up to 10A)
• Expansion port for use with Tank Pro 4000: (100A, 100V max)

• Power+ (input): 3000W, 90-254VAC, 60 Hz, 30A
• Power+ (output): 3600W, 120VAC, 60 Hz, 30A
• Accessory port (input and output): 56 VDC, 100A

• Three USB-A: 18W, 5-12 VDC up to 3A
• Total combined USB-A output: 54W
• USB-C (100W): 100W 5-20 VDC up to 5A
• USB-C (Two 30W): 30W 5-20 VDC up to 3A
• Total combined USB-C output: 160W
• 12V Auxiliary power port: 162W 13.5 VDC, 12A continuous, 40A surge (100ms)
• 12V High power port (HPP): 405W, 13.5 VDC, 30A continuous, 40A surge (100ms)
• Two 12V 6mm utput ports: 135W, 13.5 VDC, 10A continuous, 40A surge (100ms), total combined 12V output: 375W
• AC (inverter) (pure sine wave): 3600W continuous, 7200W surge, 120 VAC, 60 Hz, 30A
• AC (single port) (pure sine wave): 2400W, 120 VAC, 60 Hz, 20A
• AC (TT-30R) (60 Hz - pure sine wave): 3600W, 120 VAC, 60 Hz, 30A
• Total combined output: 4189W

• Cell chemistry: LiFePO4
• Battery pack capacity: 3993.6Wh (51.2V, 78Ah)
• Single cell equivalent capacity: 1248Ah at 2.2V
• Lifecycles: 4000
• Shelf life: 12-18 months

• Solar (3000W max): 2 hours
• 400W (Boulder 200 x 2): 12 hours
• 600W (Boulder 200 x 4): 6 hours
• 1200W (Ranger 300 x 4): 4 hours
• Car charger (10A): 37 hours
• Vehicle alternator at 400W: 11 hours

• Bluetooth 4.1
• Wi-Fi a/g/n
• Note: Goal Zero Power companion app required
