FSR DR-EDID2 Emulator EDID Manager / Learner

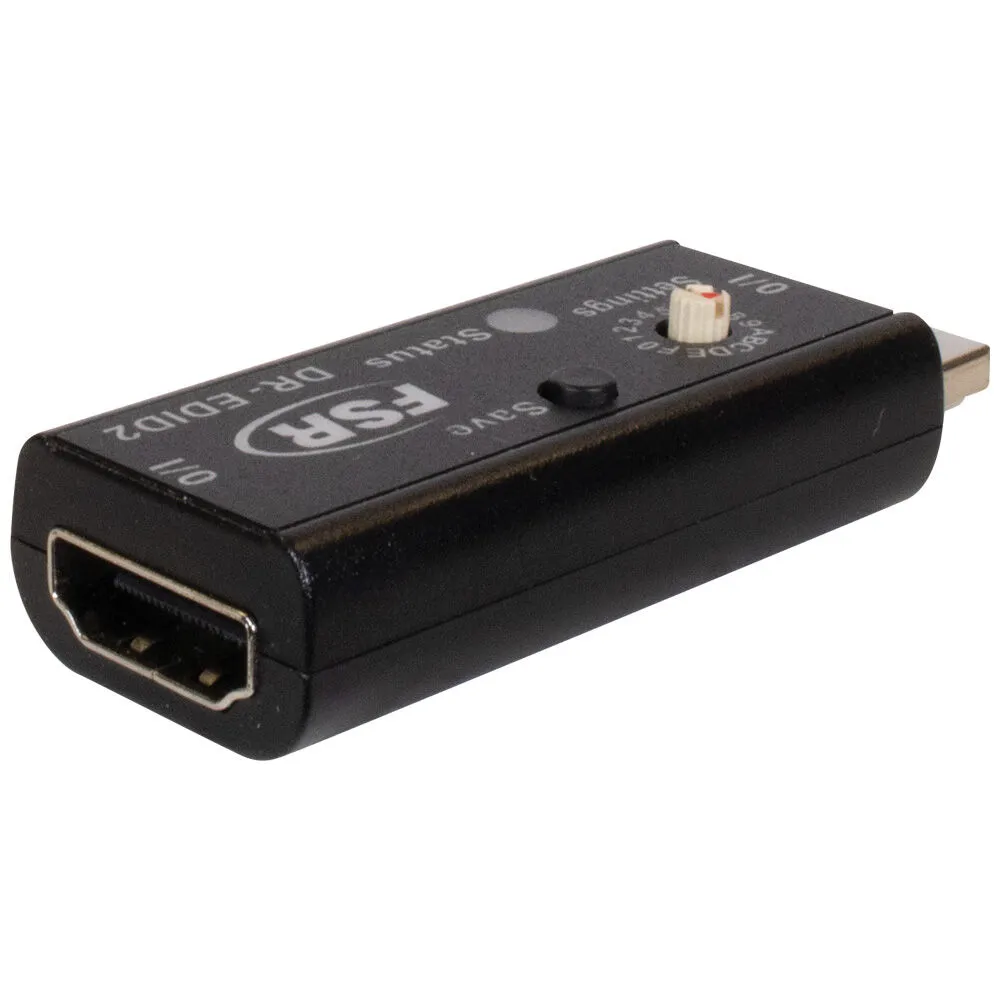

The DR-EDID2 Emulator from FSR is a unique, self-powered, bidirectional device that can be integrated at either end of any HDMI system as an EDID manager/learner. Engineered to manipulate the EDID information provided to a connected HDMI source or any device earlier in the HDMI chain, the DR-EDID2 can now learn and store up to three EDID tables from any display, and the hot-pluggable device supports resolutions up to UHD 4K60 with HDCP 1.4/2.2 compatibility.

EDID (Extended Display Identification Data) includes essential details about the display's capabilities, such as supported audio and video formats and available features. The DR-EDID2 enables installers to either substitute one of the five preset EDID files or to learn, store, and recall up to three EDID files from any display device through a quick and straightforward process in the field. This feature makes the DR-EDID2 an invaluable tool for troubleshooting system issues like unstable images or complete image loss due to excessive cable length. When permanently installed, the DR-EDID2 forces the source to limit its output resolution, reducing the required bandwidth of the cabling infrastructure and thus ensuring reliable operation.

Features at a Glance

• Five preinstalled EDID files
• Passive inline device—no external power needed
• Bidirectional functionality
• HDCP 1.4 / 2.2 Compatible
• Hot pluggable
• Supports HDMI 1.3/1.4/2.0
• Supports up to UHD 4K60
• Learns and stores up to three EDID tables from any display
• Restores reliable image display to bandwidth limited systems
