FotodioX WonderPana 145 Core Unit Kit for Canon TS-E 17mm Lens

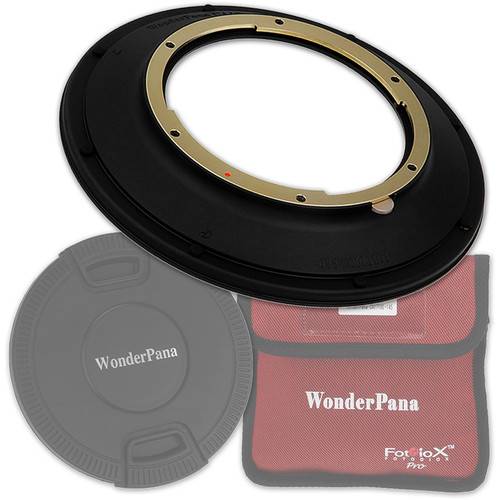

This WonderPana 145 Core Unit Kit from FotodioX includes a WonderPana 145 Core Unit designed to specifically fit the Canon TS-E 17mm f/4L lens, as well as a separately available WonderPana 6.6" Holder Bracket. Those items can be combined to allow for the convenient use of two 2.5 to 4.0mm-thick filters measuring 6.6" wide, or one 2.5 to 4.0mm-thick filter measuring 6.6" wide, along with one FotodioX 145mm round filter behind it. A 145mm inner-pinch lens cap for 145mm FotodioX round filters is also provided.

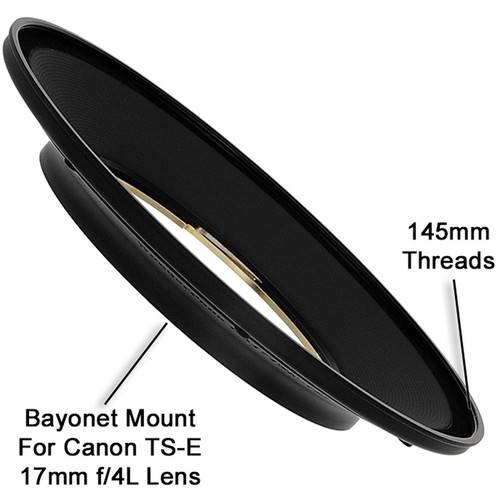

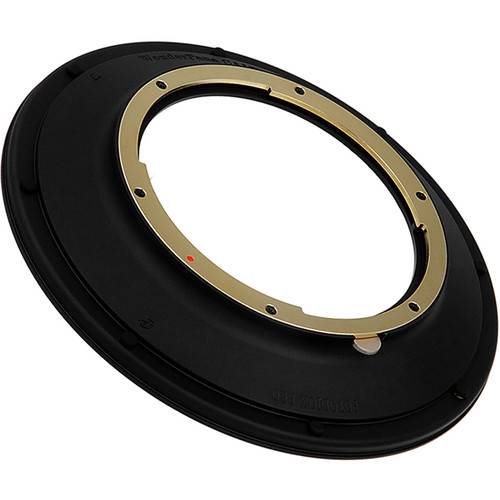

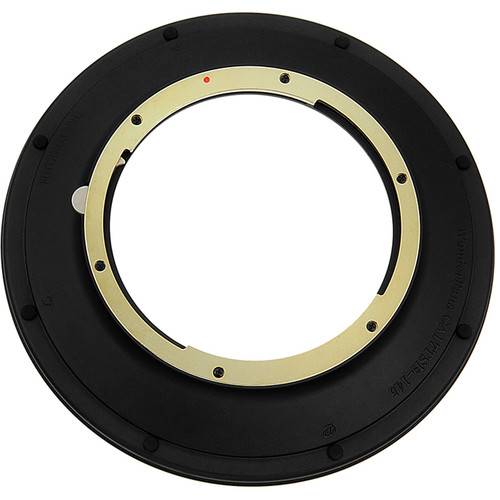

The included WonderPana 145 Core Unit consists of a bayonet front filter ring. Use of a WonderPana 6.6" Holder Bracket is easily accomplished by separately attaching its two assembly pieces to opposite sides of this WonderPana Core Unit using that holder bracket's six included brass short-screws. Pre-tapped threaded inserts along the edge of this Core Unit accommodate those screws and ensure that the two assembly pieces are positioned parallel to each other and can hold a 6.6"-wide filter between them. A combined WonderPana Core Unit and WonderPana 6.6" Holder Bracket can then be attached to a Canon TS-E 17mm f/4L lens.

After being fitted onto a Canon TS-E 17mm f/4L lens, the eight pre-tapped threaded inserts all around the edge of the WonderPana 145 Core Unit allow a WonderPana 6.6" Holder Bracket to be installed in 45° increments so that rectangular filters placed within it can be angled to the best approximate position relative to the subject in front of the camera. This helps to benefit the use of graduated neutral density and other filters that are enhanced by varied positioning.

A FotodioX WonderPana 6.6" Holder Bracket provides two pairs of filter slots, a configuration that accommodates two compatible rectangular filters. For each rectangular filter that is placed within one of the holder bracket's slots, its position can be secured using the brass long screws that are also included with the holder bracket. Pre-tapped threaded inserts along the outside of the holder bracket allow the long screws to each apply pressure to a spring-loaded retainer within each filter slot. When a pair of the long screws is used, the level of grip upon a rectangular filter can be varied, which can complement the use of graduated filters whose effect can be adjusted to better suit changing lighting conditions or creative demands by sliding them up or down within a filter slot.

This FotodioX WonderPana 145 Core Unit features an aluminum alloy construction and includes front filter threads, which allow a FotodioX 145mm round filter to be used along with a WonderPana 6.6" Holder Bracket. If a 145mm round filter is used on the attached WonderPana 145 Core Unit, the rectangular filter slot closest to the rear of the holder bracket becomes unavailable.

• Compatible with a Canon TS-E 17mm f/4L lens
• Accommodates a separately available WonderPana 6.6" Holder Bracket
• With a WonderPana 6.6" Holder Bracket, allows for the convenient use of two 2.5 to 4.0mm-thick filters measuring 6.6" wide, or one 2.5 to 4.0mm-thick filter measuring 6.6" wide, along with one FotodioX 145mm round filter behind it
• Allows a WonderPana 6.6" Holder Bracket to be installed in 45° increments so that rectangular filters placed within it can be angled to the best approximate position relative to the subject in front of the camera
• Includes 145mm front filter threads, which allow a FotodioX 145mm round filter to be used along with a WonderPana 6.6" Holder Bracket
• Constructed from aluminum alloy for durability while remaining lightweight

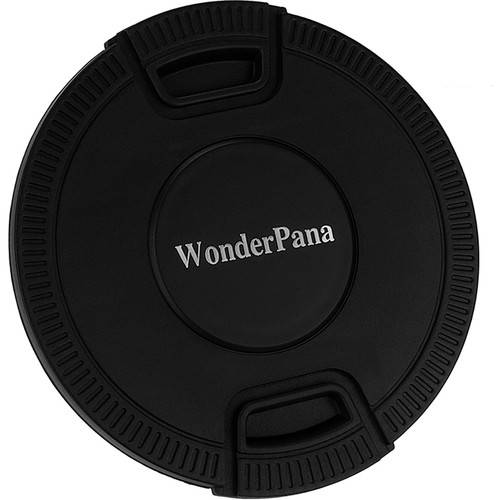

• 145mm front lens cap with a squeeze, spring, and snap-on mechanism
