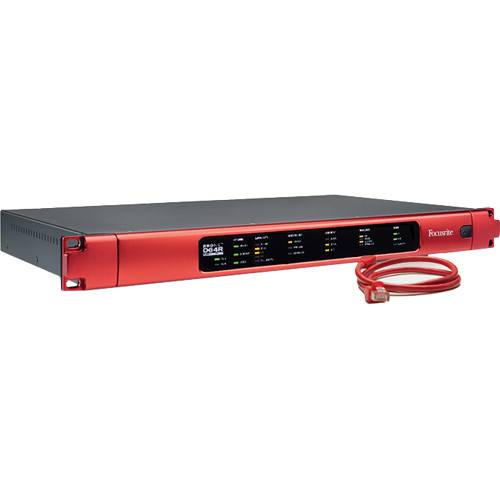

Focusrite RedNet D64R 64-Channel MADI-Dante Bridge

D64R features a sample rate converter (SRC) on each input and output allowing interfacing between MADI and Dante irrespective of the sample rate at which either system is operating. A Dante network can be connected to MADI-based digital consoles, computer cards, converters, and much more. In addition to both coax and optical MADI interfaces, RedNet D64R provides Word Clock in and out.

Dual Ethernet ports are provided, with locking etherCON connectors and several operating modes including daisy-chaining and redundancy confirmed by front-panel indicators. Two separate power supplies with fault detection capability are included, with separate power input sockets (including retaining clips) on the rear of the unit. Power status is indicated both remotely and on the front panel.

The D64R features a ruggedized, roadworthy engineered exterior and high internal build quality. In addition, it offers a compact 1 RU rackmount form factor for a full 64 channels of I/O.

D64R bridges a MADI system and a Dante network—and like the rest of the Focusrite RedNet range, it is fully interoperable with all other Dante network components. The bridging facility means that you can use RedNet's expanding range of high-quality audio interfaces to put analogue or digital I/O, as well as third-party Dante-compatible products, exactly where you need it, which is as close as the nearest Ethernet port. It also means that you can connect Dante components to digital mixing consoles, interfaces, and cards that use MADI.

Developed from the RedNet 6, Focusrite's D64R is a second-generation bridging module that can significantly expand the options and possibilities of both MADI and Dante networks.

A premium bonus is the Brainworx bx_console Focusrite SC channel-strip plug-in, a stellar digital emulation of the legendary and rare Focusrite Studio Console. Only 10 of the consoles were ever produced, but you can access its famed sound directly in your DAW.

Connect Dante to digital mixing consoles, interfaces, and cards that use MADI; extend a MADI system with RedNet's versatile, high-quality audio interfaces and connectivity—or connect to any other Dante-compatible devices

Supports up to 64 channels of digital audio I/O at standard sample rates (44.1/48 kHz) from a MADI system, 32 channels at 96 kHz, and 16 channels at 192 kHz
