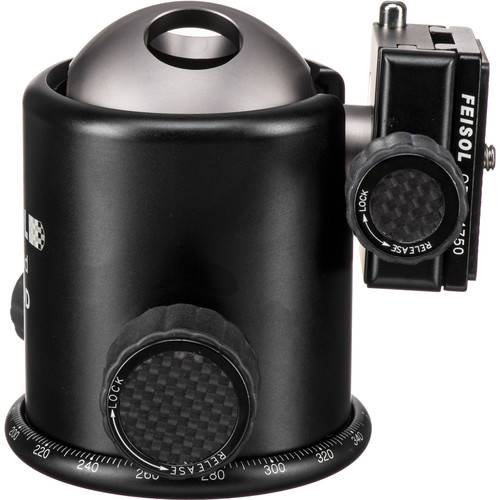

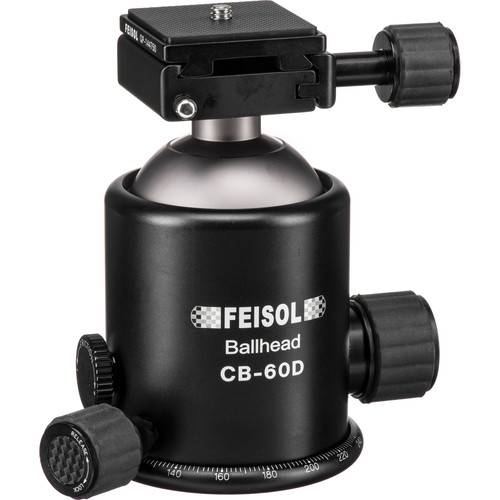

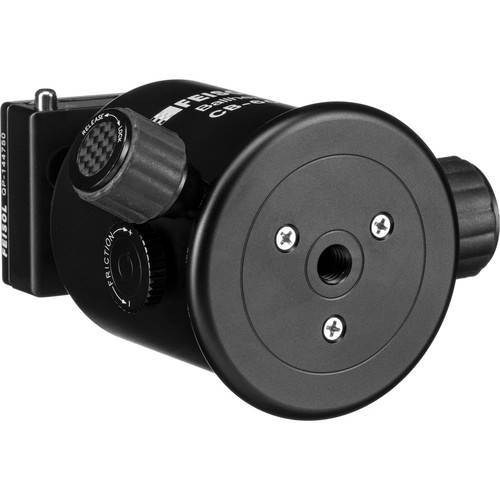

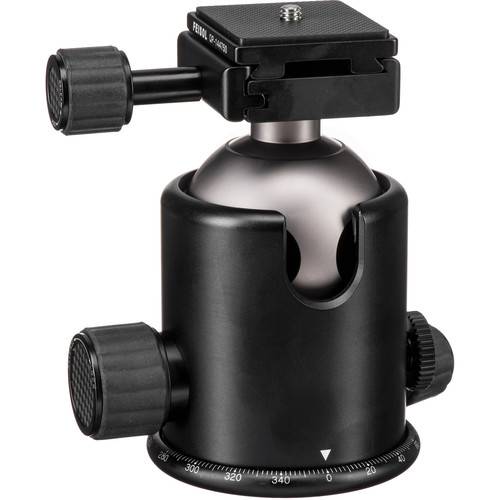

FEISOL CB-60D Ball Head

The FEISOL CB-60D is an Arca-type compatible ball head that can be attached to tripods or other support systems that feature a 3/8"-16 mount. When closed, its internal, dual-caliper locking mechanism firmly holds the head's ball-and-socket joint in place and helps provide a load capacity of 84.0 lb.

Cameras or accessories that are compatible with a 1/4"-20 mount can be connected to the included QP-144750 Quick Release Plate. The quick release plate can be attached or removed from the integrated clamp located at the top of the head's ball-and-socket joint by tightening or loosening the clamp's rubberized, knurled, locking knob. Within the recessed surface between the clamp's jaws is a retaining pin. This pin prevents an installed QP-144750 Quick Release Plate from accidentally sliding off when the clamp is opened. The quick release plate features a rubberized, non-slip platform, while a button along the edges of the clamp can be pressed to retract the retaining pin when removing the plate.

By loosening the ball head's primary locking knob, the head's ball-and-socket joint can be quickly swiveled, angled, fully tilted, or returned to its upright position. Variable tension can be applied to the ball-and-socket joint's movements by adjusting the friction knob located toward the side of the ball head opposite the primary locking knob. Toward the base of the ball head is a secondary locking knob, which controls the ability to rotate the head 360°.

• Arca-type ball head that is compatible with tripods or support systems that feature a 3/8"-16 mount
• Uses ball-and-socket joint to help maximize pan-and-tilt flexibility
• When closed, dual-caliper locking mechanism firmly holds the head's ball-and-socket joint in place and helps provide a load capacity of 84.0 lb
• Ball-and-socket joint provides 360° of swivel control, is tiltable down to a 90° angle, and can be locked into place
• Large, primary locking knob with rubberized, knurled surface allows ball-and-socket joint to be quickly swiveled, angled, fully tilted, or returned to its upright position
• Rubberized, knurled friction knob located toward the side of the ball head opposite the primary locking knob adjusts variable tension on the ball-and-socket joint's movements
• Secondary locking knob with rubberized, knurled surface allows head to rotate 360°
• Integrated clamp on top of on the ball-and-socket joint is compatible with included QP-144750 Quick Release Plate
• Integrated retaining pin on the clamp prevents QP-144750 Quick Release Plate from accidentally sliding off when the clamp is opened
• Durable, aluminum-alloy construction

UPC: 851308003824
