The blackDPA 4080 COREis a miniature cardioid lavalier microphone designed for use with wireless systems for live events, journalism, and broadcast applications. The electret-condenser capsule delivers crisp, clear, and…
Product highlights and buying context
The blackDPA 4080 COREis a miniature cardioid lavalier microphone designed for use with wireless systems for live events, journalism, and broadcast applications. The electret-condenser capsule delivers crisp, clear, and intelligible speech, while the rugged yet unobtrusive design is well suited to the demands of professional live stage work and presentations.
While small and visually unobtrusive, the 4080 uses DPA's CORE technology to deliver increased dynamic range and low self-noise for outstanding speech reproduction. Engineered for chest placement, the mic is pre-EQ'd with a 4 dB presence boost in the 4 to 6 kHz range to ensure clarity.
The cardioid polar pattern focuses audio capture on the talent, picking up less audio from the sides and helping to reduce unwanted background sounds. This pattern works best for forward-facing talent speaking in the direction of the mic, including broadcast personalities and presenters; it also helps to reduce feedback issues when monitors and PA systems are employed for sound reinforcement.
With an SPL rating of 134 dB, the 4080 is more than capable of handling most standard speakers and presenters. The microphone is powered by 5 to 10V plug-in power from a wireless transmitter. This version of the mic features a 3-pin LEMO connector compatible with Lectrosonics SSM, Sennheiser SK, and Wisycom MTP transmitters.
The 4080 CORE features a small capsule for a low-profile visual appearance. The diaphragm offers a nuanced sound optimized for speech.
The mic is pre-EQ'd with a 4 dB soft boost in the 4 to 6 kHz range for clarity. The low-cut filter also helps to minimize low-end rumbles and reduce unwanted proximity-effect bass frequencies.
The 4080 CORE features a sensitive capsule designed for standard speech applications at levels up to 134 dB SPL before clipping.
The cardioid polar pattern focuses audio capture on the talent in front of the mic and provides a consistent frequency response, even for off-axis sounds at lower volume. The narrow pickup pattern helps reduce feedback problems from monitors and PA systems for clear, intelligible speech.

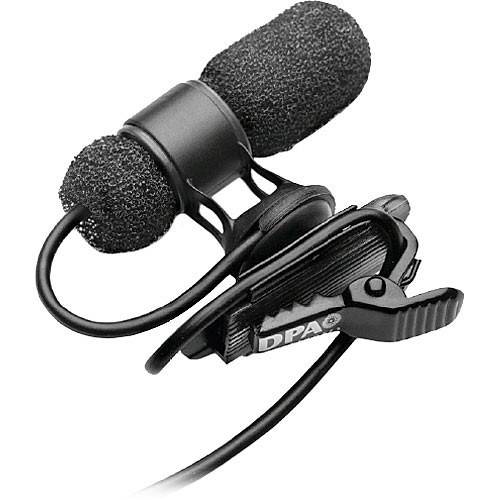

The DPA 4080 CORE includes a black foam windscreen, a white foam windscreen, and a lapel clip. The lapel clip offers a unique mounting design with a ball-shaped fixation spot, allowing the microphone to be easily turned in all directions. The clip fits both left- and right-side buttoned shirts.
