DPA Microphones 4060 CORE+ Omnidirectional Boundary Layer Microphone

The DPA 4060 CORE+ Omnidirectional Boundary Layer Microphone delivers exceptional speech clarity, elegant low-profile design, and boundary-layer acoustic advantages for boardrooms, conference facilities, courtrooms, and teleconferencing spaces. Built around DPA’s original miniature electret-condenser technology and enhanced with CORE+ distortion-minimizing performance, the 4060 offers high sensitivity, wide dynamic range, and remarkably natural voice pickup when placed on a tabletop or any hard, flat surface.

Designed to work under optimal conditions when placed on a table, the 4060 benefits from the unique characteristics of the surrounding sound field. Boundary mounting yields a 6 dB gain in direct sound and only a 3 dB gain in diffuse sound, producing greater clarity and improved high-frequency detail compared to microphones positioned above the surface. Even near table edges, placement remains flexible and highly effective.

At its center is a pre-polarized omnidirectional miniature condenser capsule with a 5.4mm vertical diaphragm—DPA's first miniature design originally developed using advanced hearing-aid and measurement-mic technology. CORE+ minimizes distortion across the entire dynamic range, preserving openness while allowing the mic to handle sound pressure levels up to 134 dB before clipping.

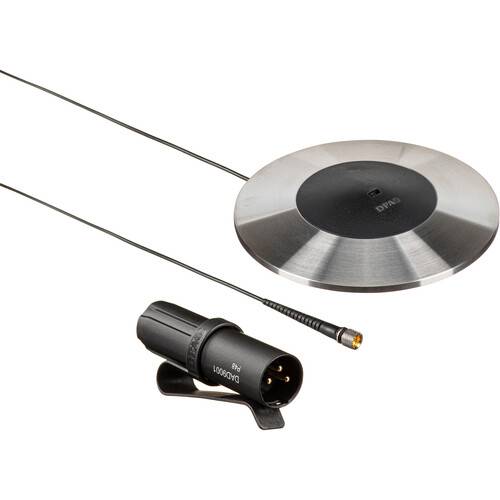

The microphone element is mounted in a precision stainless-steel base supported by a central rubber disc, creating a refined, unobtrusive tabletop presence. The discreet form factor suits modern boardrooms and courtrooms while maintaining durability and stability during everyday use.

The 4060 can be placed freely in virtually any position on a table. Two M5 threaded holes on the back allow permanent installation when needed, and the slim cable can be routed either through or along the surface for clean integration into professional meeting environments.

A wide range of DPA adapters and power supplies make the microphone compatible with nearly any input. The included DAD6001 XLR adapter supports immediate wired connection, while the MicroDot-terminated cable allows optional use with most professional wireless systems through DPA's modular adapter platform.

EAN: 5713055026325
