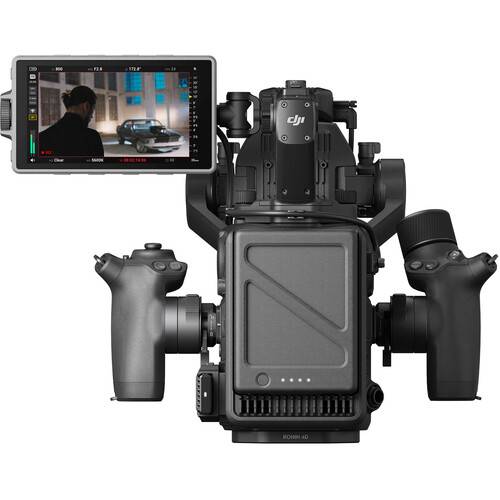

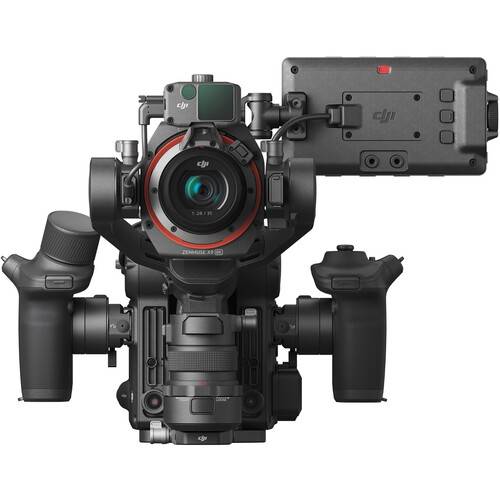

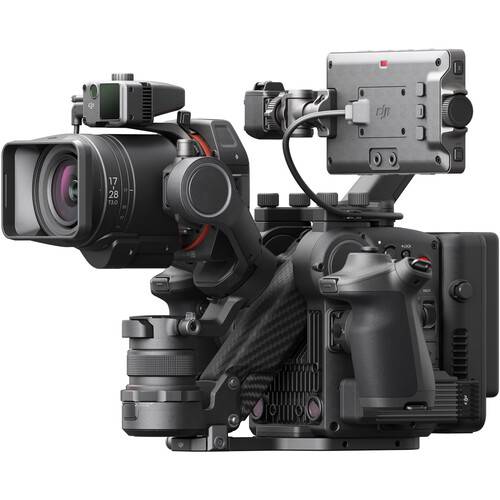

DJI Ronin 4D 4-Axis Cinema Camera 8K Combo Kit with DL PZ 17-28mm T3.0 ASPH Lens

The Ronin 4D 4-Axis Cinema Camera 8K Combo Kit with DL PZ 17-28mm T3.0 ASPH Lens from DJI combines imaging, stabilization, and focusing in a lightweight, uniquely flexible gimbal/camera rig. This 4D X9-8K version pairs the Ronin 4D gimbal with the Zenmuse X9-8K camera, a DJI DL 17-28mm T3.0 lens, a LiDAR range finder, a low-pass filter, and a RAW license that requires activation via DJI; wireless video transmission is available separately. With support for up to 8K60 17:9 video in Apple ProRes RAW, and 8K30 17:9 and 8K75 2.39:1 in ProRes 422 HQ, the X9-8K offers the higher imaging standards required for visual effects, cine-style capture, and broadcasting while reducing your setup time with its all-in-one combination design.

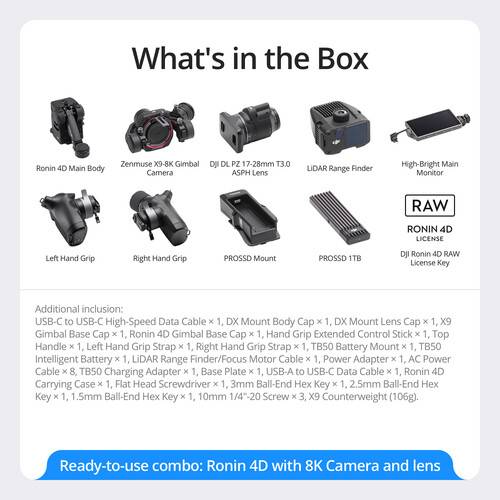

The Zenmuse X9-8K supports up to 8K video capture and includes both a RAW license key (requires activation via DJI) and the DJI PROSSD 1TB drive, DJI PROSSD mount, and USB-C high-speed data cable required for raw recording.

In addition to the RAW license key, the X9-8K Combo includes a DL lens mount and the DJI DL PZ 17-28mm T3.0 ASPH lens plus a built-in OLPF (optical low-pass filter) for maximum color accuracy.

• 7" high-bright, touchscreen monitor
• Wireless video transmitter
• X9 focus motor
• 3-channel FIZ lens control unit
• Expansion plate with SDI, XLR, and timecode ports
• DJI Leica L and M lens mounts
• Third-party ARRI PL and Sony E lens mounts

• Support for the industry-standard ACES workflow provides easy compatibility with other cinema cameras.
• The DJI DCCS color science reproduces vivid, natural skin tones in a range of lighting conditions and creates looks that are compatible with ARRI footage.
• The full-frame Zenmuse X9-8Kcamera uses a proprietary chip for advanced processing and high-performance computing.

• The D4's DL lens mount supports full-frame capture with DJI's current selection of lightweight, carbon fiber 18, 24, 35, and 50mm lenses.
• Interchangeable lens mounts are available for use with Sony E-mount or Leica M-mount lenses.
• Supports ultrawide, f/0.95 large-aperture, electronic zoom, macro, and anamorphic cine lenses.
• Please see thecurrent lens compatibility list here.

• With Dynamic Range Expansion off: Dual native ISO 320/1600.
• With Dynamic Range Expansion on: Dual native ISO 800/4000.
• EI 200 to EI 6400.
• 14.7 stops of dynamic range produce nuanced imaging under a range of lighting conditions.

• Maintains focus, even when motion blur is produced by fast-moving subjects.
• Separately available focus motor for use with manual lenses.
• Continuous autofocus is compatible with ActiveTrack Pro, a boon for solo operators.

• The AMF function (Automated Manual Focus) combines the accuracy of manual focus with the ease of autofocus.
• Operators can grab the focus wheel of the right handgrip at any time to manually focus.
• Handgrip focus wheel uses dynamic damping to provide a physical feel for focus changes.

• DJI's ActiveTrack Pro features combine continuous autofocusing with composition adjustment for professional-looking tracking shots out of the gate.
• ActiveTrack Pro is based on computer vision, deep learning technology, and the computing power of DJI's CineCore 3.0 imaging system.

• Right-hand grip has a focus wheel that doubles as a control for main camera adjustments (menus, exposure, etc.).
• Left-hand grip has a full-range joystick to control pan/tilt; useful when adjusting headroom and more during follow mode.

• Requires a ProSSD 1TB drive (included) to capture raw footage.
• USB-C port for external recording; no reader needed to offload footage.
• Integrated CFexpress Type-B card slot.

• 5.5" 1920 x 1080 monitor.
• 1000 cd/m² display.
• Touchscreen control.

• Integrated stereo microphones capture dual-channel 24-bit audio.
• Built-in 3.5mm audio input port and XLR port via expander plate.

• Uses the same TB50 intelligent batteries as the Ronin 2 and Inspire 2.
• Each battery provides up to 2.5 hours of capture time.
• Batteries charge fully in approximately 1.5 hours.
• Support auto-heating for cold weather use.
• AC adapter for uninterrupted shooting.
