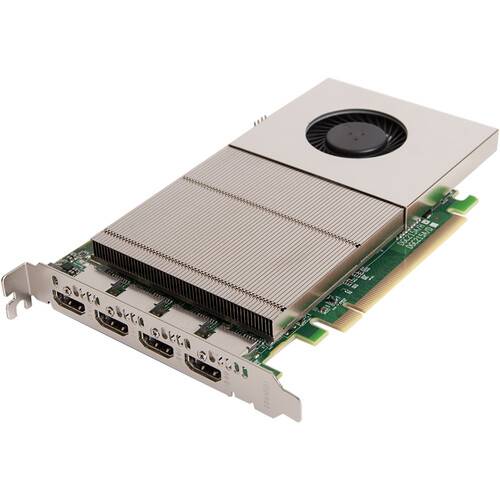

DATAPATH Image4K Graphics Card

The Image4K Graphics Card from DATAPATH is a professional 4-output graphics card for multi-display setups and video walls. The 4-HDMI 2.0 outputs can drive four displays simultaneously at 3840 x 2160 at 60 Hz per channel. Up to six cards can be used in the same system to support flexible system configurations up to 24 screens. This card uses a heat sink.

Four 4K60 4:4:4 HDMI 2.0 outputs

Enables full 4K60 capture and display in Datapath VSN controllers

HDCP 2.2 supported when using Datapath capture cards

Support for up to 6 cards in a single system with a total output of 199 MP

Fully compatible with Datapath's Display Driver Configuration Tool (DDCT) and Diagnostic Suite

Over 80,000 hour MTBF

Designed for professional, multi-screen, and video wall installations, the Image4K enables scalable solutions that deliver full 4K60 4:4:4 content over four HDMI 2.0 outputs. It is integrated with Datapath's graphical setup wizard and is easy to configure for different combinations of monitors, projectors, or LED controllers. Output resolution, rotation, and wall layout are all configured using the intuitive graphical interface.

The driver runs with Datapath hardware available for use with Windows 10 64-bit. The function of the display driver is to present one large desktop to the Windows operating system. The multi-screen driver supports up to 24 screens.

The Image4K is fully compatible with Datapath's WallControl 10 software, which allows you to launch and position video and application windows to create complex wall layout configurations. WallControl 10 features a representational window of the entire display wall showing position and size of windows, including a live sample of all video content. The full version allows you to save layouts and recall them for future use and operate WallControl 10 on a remote PC via a network connection.
