The HDMI input supports up to 4096 x 2160 resolution at 30 fps, and the four HDMI outputs support up to 1080p60 resolution. All five HDMI ports provide HDCP support. There is also an Ethernet port that allows connecting…
Product highlights and buying context

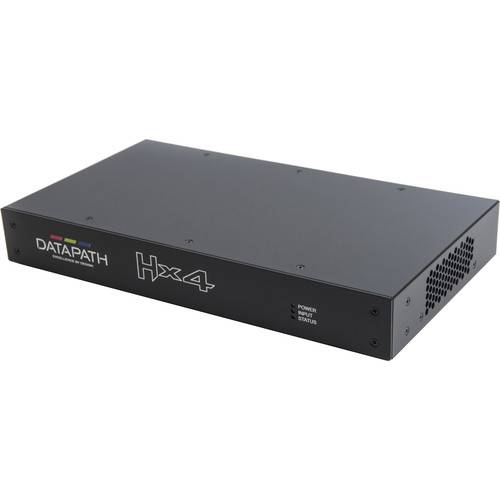

The HDMI input supports up to 4096 x 2160 resolution at 30 fps, and the four HDMI outputs support up to 1080p60 resolution. All five HDMI ports provide HDCP support. There is also an Ethernet port that allows connecting to a network for configuration, monitoring, and for third-party API integration. Capable of adjusting all monitor scale factors and orientations, the Hx4 is designed as a flexible, standalone control device. A different region of the input image can be selected for each output, with rotate, crop, upscale, mirror, and bezel correction done internally. The regions can be set to overlap to allow any output to replicate another.
The Hx4 is designed to work with the downloadable DATAPATH Wall Designer software for Mac and Windows. Wall Designer is a multi-screen design tool that lets you add new displays, visualize the displays' content by adding inputs and adjusting regions, and program one or all Hx4 devices over a USB or network connection.
