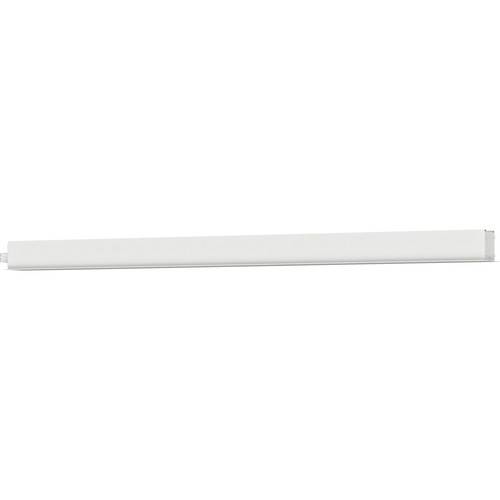

Da-Lite 24029EBLI ViewShare Tensioned Advantage Electrol 58 x 104" Ceiling-Recessed Motorized Screen (220V, Box Only)

The 220V 24029EBLI ViewShare Tensioned Advantage Electrol 58 x 104" Ceiling-Recessed Motorized Screen (fabric, roller, and motor available separately) from Da-Lite integrates an HD camera into the screen, and is compatible with any free peer-to-peer video conferencing software.

The ViewShare system screen features simple ceiling-tile installation that can be done in two stages. The screen case can be installed during the rough-in construction stage, and the fabric assembly can be completed during the finishing stage.

Note: This box is part of a system. To complete the system you will also require the fabric, roller, and motor assembly. Purchasing the box first allows the box to be installed during the "rough-in" phase of construction. The screen and other components can then be installed once construction is complete. Please be sure to select the fabric, roller, and motor assembly with the exact size and feature as designated by this box. The fabric, roller, and motor that goes with this model number is: 24029EFLI.

High Contrast Cinema Vision Surface

High Contrast Cinema Vision features a gray base for deeper reproductions of black, which improves contrast, and an increased reflectivity to enhance brightness for moderate ambient light. Ideal for video images. Cone: 100° Gain: 1.1

Tensioning System

• Smooth Roll Technology to keep your screen perfectly flat
• Slim-Tab, a lower profile and stronger tab design to keep your screen perfectly taut
• Tensioning Cable System to prevent warping and ensure even lateral tension

• Simple installation with the included installation kit
• UL Plenum rated case
• White powder-coated case for a clean aesthetic
• Standard black backing retains projected brightness on front projection surfaces
• Seamless screen surface

Included Options

Box Only - Screen Fabric Available Separately

This screen comes with the box only, meaning the desired screen material must be purchased separately. This design allows the box to be installed during the construction phrase while the screen can be installed later, once construction is complete . This ensures the screen won't be damaged during construction

Integrated Jabra SPEAK 410 MS Speakerphone

• Connects via USB
• Requires 120 VAC power (AC adapter included)
• Microsoft certified
• Wideband hi-fi frequency response
• Includes digital signal processing, which digitally optimizes your voice and music while suppressing echoes
• Omnidirectional microphone plus noise filter enhances call clarity by eliminating background noise
• Standard (E-STD) microphone sensitivity is comparable to a normal telephone receiver and is used in most telephone devices
• Mute function directly on the device

Video Projector Interface

Allows projectors with 5 or 12V LVC leads to automatically trigger the screen to raise or lower whenever the projector is turned on or off

Logitech C930e HD Webcam

• The auto-focusing camera is integrated into the slat bar
• Plug-and-play connectivity
• Full HD 1080p video calling (up to 1920 x 1080 pixels); 720p HD video calling (up to 1280 x 720 pixels) with supported clients
• H.264/SVC video compression
• Supports H.264 SVC 1080p for Microsoft Lync 2013, along with optimizations for call performance in single or multiparty HD video
• 90° field of view
• Up to 4X zoom in 1080p
• Rightlight 2 Technology for clear image in various lighting environments, even low light
• Optional light application for control of pan, tilt and zoom
• Carl Zeiss lens
• External privacy shutter
• Automatic low-light correction
• High-speed USB 2.0 certified (ready for USB 3.0)
• System requirements: Windows 7 or 8 / Mac OS X 10.7 or higher
• 2.4 GHz Intel Core 2 Duo processor
• 2GB of RAM
• Adequate hard drive space for recorded videos
• USB 2.0 port
• Compatible with UVC apps, and H/264 for Lync 2013. Optimized for Lync and Skype

Low Voltage Control (LVC)

Allows the included wall switch as well as devices, such as automation systems, third-party wall switches, and remotes that support LVC to raise or lower the screen remotely
