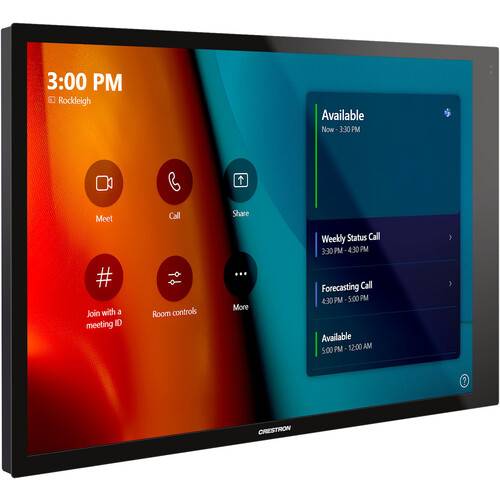

Crestron TSW-1070-B-S 10.1" WUXGA Wall Mount Touchscreen Monitor (Black)

The Crestron TSW-1070-B-S 10.1" WUXGA Monitor is a versatile, wall-mountable, interactive touchscreen display designed for control of Crestron, Zoom Rooms, home automation systems, and similar applications. This capacitive touch display features custom programmable control buttons with support for Smart Graphics software and HTML5-based custom UI projects. PoE and Wi-Fi network connectivity, along with a comprehensive assortment of mounting accessories, simplify installation.

The TSW-1070 offers a sleek and powerful user interface for controlling technology in a home, boardroom, classroom, or command center. The touchscreen provides an intuitive interface that is fully customizable with easy-to-use capacitive controls, true feedback, and real-time status display. A built-in proximity sensor wakes the screen without requiring any user interaction, and automatic brightness controls ensure optimal visibility under varying lighting conditions.

The TSW-1070 provides a universal status bar populated with virtual buttons for quick access to common touchscreen functions. The touchscreen comes preconfigured with virtual buttons for Power, Home, Lights, Up, Down, and Microphone. Each button can be programmed via a Crestron control system to provide custom functionality, and unused buttons can be hidden individually. The universal status bar is expanded or hidden using simple swipe gestures on the touchscreen display.

The TSW-1070 supports custom user interfaces created with Crestron HTML5 User Interface and Smart Graphics technologies, allowing greater flexibility for UI developers and programmers.

• Crestron HTML5 User Interface enables UI designers to develop rich, front-end user interfaces with increased reusability and efficiency using modern web methodologies. Crestron HTML5 User Interface development tools are provided to simplify the creation of user interfaces built on standard web technologies.
• Smart Graphics enables programmers to integrate fluid gesture-driven controls, animated feedback, rich metadata, embedded apps and widgets, and full-motion video into their user interfaces. It provides dynamic features such as graphical buttons and sliders, lists and toolbars, drag-and-drop objects, dashboard widgets, screensavers, and customizable themes.

With built-in voice recognition, spoken commands can be issued to the TS-1070 to quickly turn devices on or off, select and play a specific media source, change the channel, choose a lighting scene, lower the window shades, lock the doors, arm the security system, or enter a password.

Native support for H.265, H.264, and MJPEG formats allows the TS-1070 to display live streaming video from an IP camera, a streaming encoder (Crestron DM-TXRX-100-STR, or similar), or a DigitalMedia switcher. Video is delivered to the touchscreen over Ethernet, eliminating the need for any extra video wiring.

Rava SIP Intercom Technology enables hands-free VoIP communication with other Rava-enabled touchscreens and door stations. Rava works over Ethernet, supporting two-way intercom and paging without requiring any special wiring. VoIP phone capability is also possible through integration with a SIP-compatible IP phone system or SIP server, allowing hands-free telephone functionality complete with speed-dialing, caller ID, custom ringers, and other enhancements. Built-in echo cancellation affords full-duplex performance for clear, seamless voice communication using the integrated microphone and speakers.

Sonos and Crestron have partnered to provide a powerful whole-house music experience. From any touchscreen in the house, browse for tracks, artists, or playlists using all the services available from Sonos and instantly play them in any room using Sonos wireless speakers or a Crestron DM-NAX-8ZSA. The Sonos app runs natively on the TS-1070, enabling enhanced control of Sonos products as part of a complete Crestron system. The app checks for updates nightly so it’s always current, and support for the Sonos S2 App is provided.

Using PoE technology, the TS-1070 gets its operating power directly through the network cable. PoE (Power over Ethernet) eliminates the need for a local power supply or any dedicated power wiring. Crestron PoE switches (CEN-SW-POE-5 or CEN-SWPOE-163) offer a total networking solution with built-in PoE for multiple touchscreens. A PoE Injector (PWE-4803RU3) is also available to support a single touchscreen.

NOTE: PoE+ is required when connecting a light bar or hallway sign via USB. Refer to the Power specifications for more details.

Using the bracket provided, the TSW-1070 is easily installed over a 2-gang or 3-gang US electrical box, or a 2-gang European or UK electrical box. A security latch option is included to deter unauthorized removal of the touchscreen.

Additional wall mounting options are afforded using the optional TSW-UMB-70 universal mounting bracket, TSW-UMB-70-PMK preconstruction mounting kit, and TSW-UMB-70-BBI back box (all items sold separately).

• Works as a room scheduling panel for Crestron and third-party apps
• Can be used as a control panel for Zoom Rooms and Microsoft Teams
• May be used for Crestron Home OS control
• Built-in Bluetooth proximity detection beacon
• Built-in web browser
• Enterprise-grade security includes 802.1X authentication, TLS encryption, HTTPS connectivity, and Active Directory service integration
• USB 2.0 port for connecting Crestron supported accessories
• Compatible with XiO Cloud service
