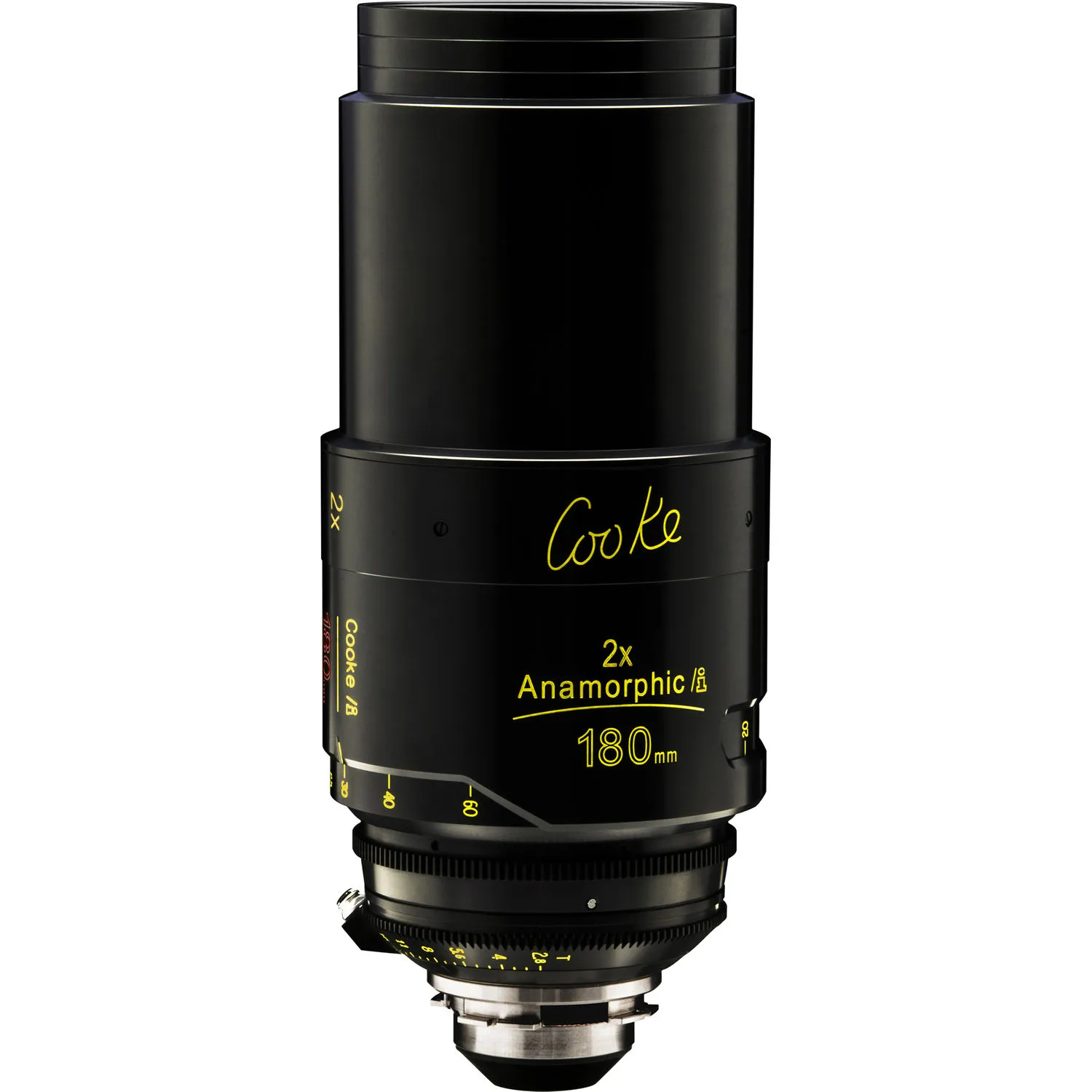

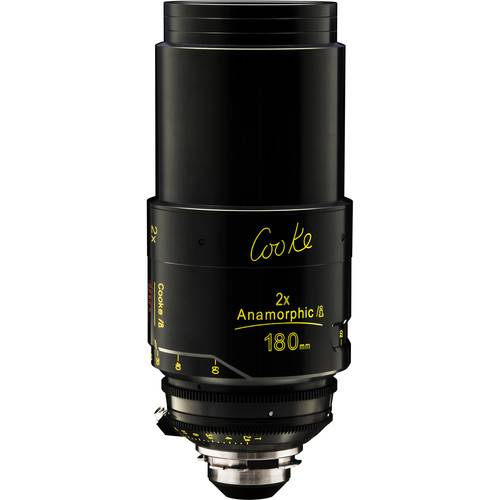

Cooke 180mm T2.8 Anamorphic/i Prime Lens (PL Mount)

This 180mm Anamorphic/i Prime Lens features the classic, natural yet sharp "Cooke look" in an anamorphic format. One ofCooke's extensive Anamorphic/i series, the 180mm prime incorporates an 11-blade iris for cinematic-looking, 2:1 oval bokeh. Designed for use with both digital cinema and film cameras, the Cooke Anamorphic/i primes provide a 2x squeeze and cover image formats up to Super35. For maximum optical performance, aberration, flare, and distortion correction extend over the entire image area, and throughout the 180mm's T2.8-22 aperture range. The Anamorphic/i primes are color-matched with Cooke's S4/i, 5/i, and mini S4/i series of prime lenses.

Each Anamorphic/i prime sports both a hardened PL mount and a cable connection that uses Cooke's /i Technology to transmit lens data to compatible cameras. Lens setting data including focal length, aperture, focus, and depth-of-field, are provided in both feet and metric measurements.

The 180mm Anamorphic/i Prime Lens features a 64" minimum focus distance, focus marks in feet and meters, a relatively light weight of 12.8 lb, and a compact length of 11.7". The lens is constructed with 0.8 MOD geared focus and iris rings for use with follow focus, zoom control, and wireless FIZ systems. A large lens barrel, an increased number of focus marks, and Cooke's cam-style focus movement enable precise focus pulls. Focus marks are clearly visible and engraved on the lens barrel in both feet and meters.

Features

Classic, natural yet sharp "Cooke look" with a 2x1 anamorphic squeeze

Covers up to Super-35 sensors

Wide T2.8 to T22 aperture range

Color-matched with other Cooke primes

Relatively lightweight, compact form factor with 110mm front diameter

PL /i Technology mount will transfer lens data when used with compatible cameras

11-blade iris produces 2:1 oval bokeh (out-of-focus highlights)

300° of focus barrel rotation; 90° of aperture scale rotation

/i Technology-Compatible Cameras & Partners

Including but not limited to:

Aaton, Andra, Angenieux, ARRI, Atomos, AVID

Birger Engineering, Blackmagic Design, Canon, Cinematography Electronics

CMotion, Codex, CW Sonderoptics, Element Technica, Fujinon, gbi, IB/E Optics

Mark Roberts Motion Control, OptiTek, Ovide, Panavision, Preston Cinema Systems

RED, Service Vision, Sony, The Foundry, The Pixel Farm, Transvideo, Vision Research
