Cobalt SAPPHIRE Quad-Channel SMPTE ST 2110 to HDMI 2.0/SDI Converter

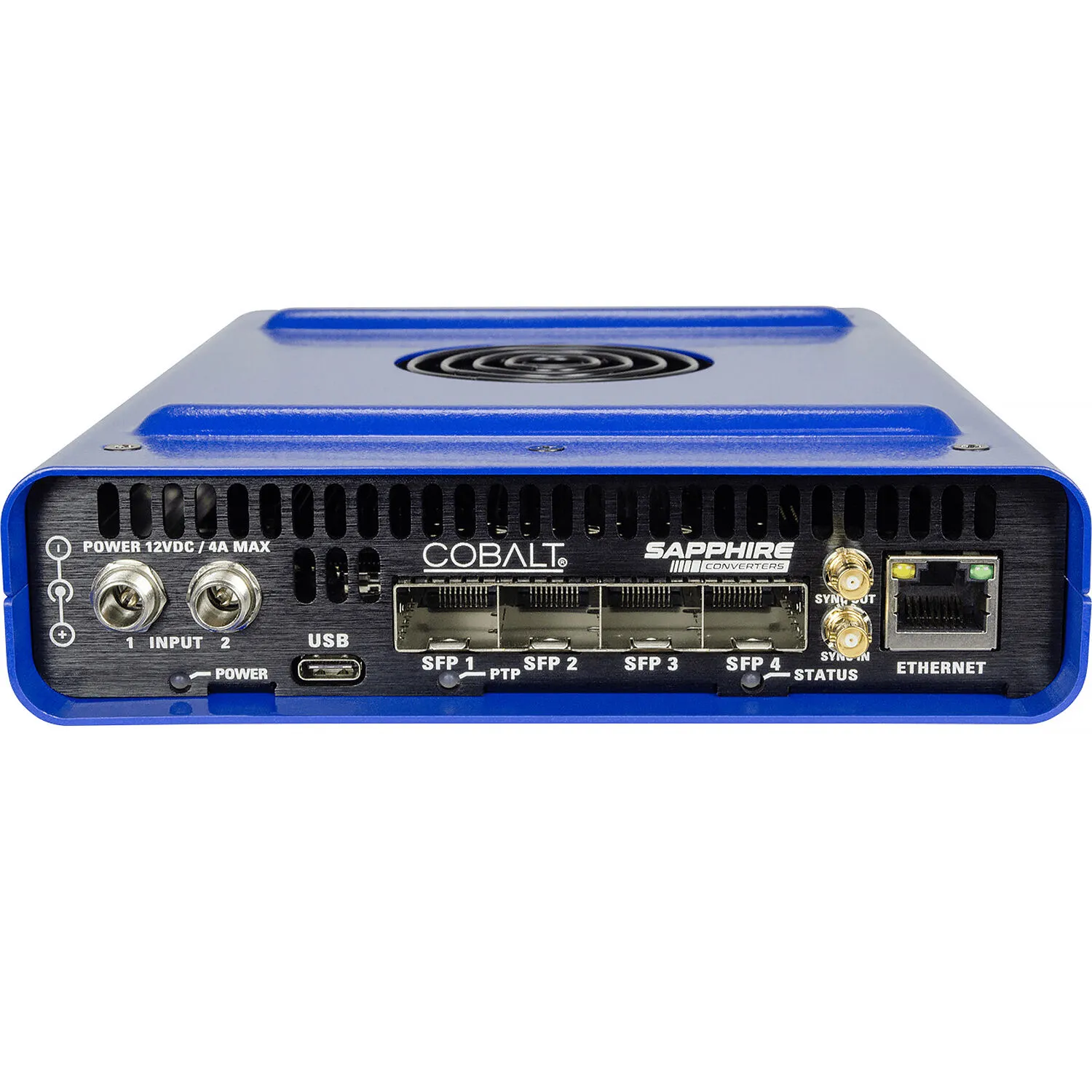

Display incoming IPMX content, including content coming from a WAN connection, on HDMI-compatible monitors with the SAPPHIRE Quad-Channel SMPTE ST 2110 to HDMI 2.0/SDI Converter from Cobalt. Designed to mount directly behind the monitor to avoid taking up additional rack space, the device is equipped with four HDMI 2.0 outputs and four SDI outputs that can send out a signal simultaneously, making it ideal for use in compact control and edit suites. It features dual SFP cages with support for 10G and 25G Ethernet, and it also has an additional 1 Gb/s copper Ethernet port for out-of-band management, an integrated active cooling fan, and redundant power connections.

Additional Details

• SMPTE 2110-20/22 to HDMI converter unit with four simultaneous HDMI and four simultaneous SDI outputs (there are limitations on the configuration when there are SDI inputs)
• Designed to be mounted behind the monitor
• Redundant power connections
• Optional audio part BBG-4Ho/4Sio-AUD with four 3.5mm TRS jacks for consumer analog audio levels.
• RJ45 Ethernet Port 100/1000 for communication and control
• Capable of fully asynchronous operation and IPMX-compliant
