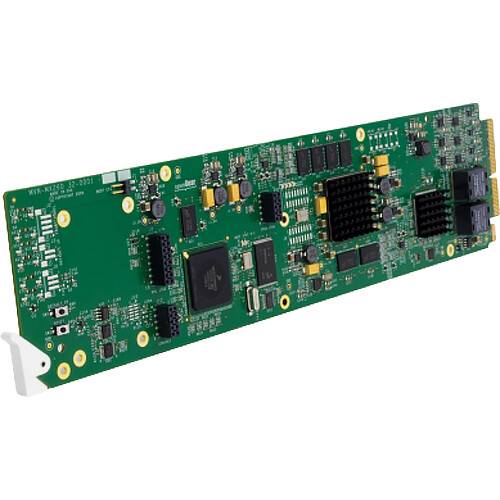

Cobalt Rear I/O Module MPEG4/2 Decoder with ASI/IP/SDI I/O for 20-Slot Frame

Add the Rear I/O Module MPEG4/2 Decoder with ASI/IP/SDI I/O from Cobalt to your openGear 20-slot frame for real-time MPEG4 AVC and MPEG2 decoding. The card provides DVB-ASI and IP streaming inputs and decodes MPEG formats via HD/SD-SDI, CVBS, DVB-ASI, and HDMI outputs.

The card also can de-embed audio via its L/R analog output. It is ideal for decoding IP cameras such as surveillance or PTZ that support IP RTMP/RTSP streaming output. This card takes up two slots in a 20-slot openGear frame.

Quick Details

• MPEG decoding solution with MPEG4 AVC and MPEG2 to ASI, SDI, and CVBS with built-in audio codecs
• Up to two DA SDI BNC outputs with a convenience IP output
• IP reception of unicast or multicast
• DVB-ASI turnaround to IP and ASI with SPTS splitting
• MPEG-1 Layer II, AAC -LC, AAC-HE, E-AC-3, and AC-3 audio codecs standard
• Supports RTMP and RTSP sources
• SMPTE-2038 processing allows de-embedding of SMPTE-2038 generic ancillary data packets
• Support for RTP/ARQ interoperability with +RTP/ARQ
• Support for selecting desired video PID in multi-angle streams
• Several options available for scalable configuring
• SNMP MIB included
• Low-power/high-density design
• Remote control/monitoring via Dashboard software
• Hot-swappable
