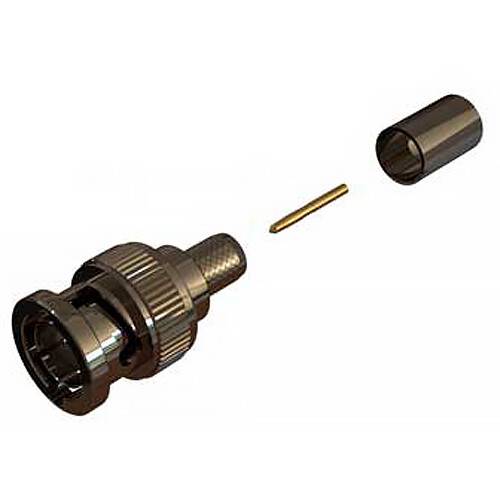

COAX Connectors Ultra-HD 12G BNC Straight Crimp/Crimp Plug for Belden 4694R (100-Pack)

This 100-pack of Ultra HD 12G BNC Straight Crimp/Crimp Plug for Belden 4694R connectors from COAX Connectors features gold-plated center and nickel-plated outer contacts, with a nickel-plated bayonet cap. Supporting 12G signals, it is compatible with with Belden 4694R as well as similar cables in group EF. Typical applications are, broadcast, including Ultra-High Definition (4K), telecom, instrumentation, security, mil/aero and many others.

• Center contact: brass
• Outer contact: brass
• Insulator: PTFE
• Bayonet cap: zinc
• Center contact plating: gold
• Outer contact plating: nickel
• Bayonet cap plating: nickel

• Impedance: 75 Ohms
• Frequency range: up to 12 GHz
• Dielectric withstand voltage: 1500 Veff
• Insulation resistance: 5000 Megohms
• Return loss: -20 dB @ 12 GHz

• Design standard: IEC 61169-8
• RoHS3 compliant: yes
• Center contact termination: crimp
• Outer contact termination: crimp
• Mating cycles: 500
• Contact retention: 10N min
• Cable retention: 100N min
• Weight: 0.0394 oz
• Mating force: 13.6N max
• Un-coupling force: 13.6N max

• Operating temperature: -67 to 311°F
• IP rating (Mated): IP64
