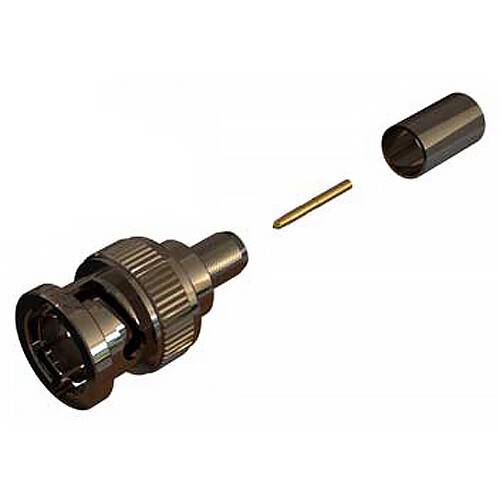

COAX Connectors Ultra HD 12G BNC Straight Crimp/Crimp Plug for Belden 4505R (100-Pack)

This 100-pack of Ultra-HD 12G BNC Straight Crimp/Crimp Plug for Belden 4505R connectors from COAX Connectors is suitable for use at frequencies of 12 GHz. Supporting 12G signals, it is compatible with Belden 4505R, as well as similar cables in group EF. Both contact and crimp sleeve are annealed to provide a robust and durable termination using standard US crimp sizes.

Materials

• Centre contact: brass
• Outer contact: brass
• Insulator: PTFE
• Bayonet cap: zinc
• Centre contact plating: gold
• Outer contact plating: nickel
• Bayonet cap plating: nickel

• Operating temp: -67 to 311°F
• IP rating (mated): IP 64
• Impedance: 75 ohms
• Frequency: 0-18 GHz
• Dielectric W/V: 1500 Veff
• Insulation res: 5000 Megohms
• Contact retention: 10 N min
• Cable retention: 100 N min
• Mating cycles: 500
