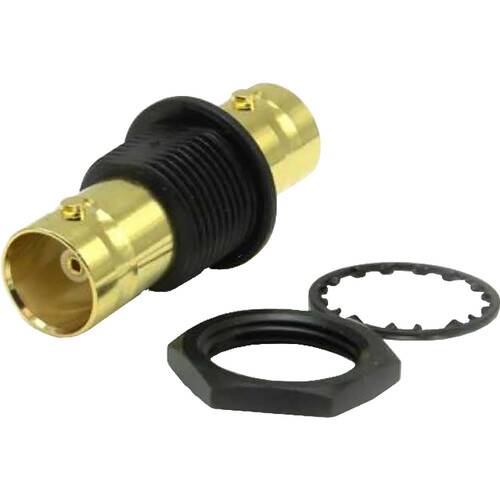

COAX Connectors BNC Korus Insulated Bulkhead Jack-to-Jack Adapter (100-Pack)

This BNC Korus Insulated Bulkhead Jack-to-Jack Adapter from COAX Connectors supports 12G video signals. Suitable for HD and UHD broadcast applications.

• Operating temp: -67 to 311°F
• IP rating (mated): IP 40
• Impedance: 75 ohms
• Frequency: 0-12 GHz
• Dielectric W/V: 1000 Veff
• Insulation res: 1000 Megohms
• Contact retention: 15 N min
• Mating cycles: 500

Performance

• -35.96 dB @ 3.0 GHz
• -32.15 dB @ 6.0 GHz
• -23.13 dB @ 9.0 GHz
• -18.87 dB @ 12.0 GHz
