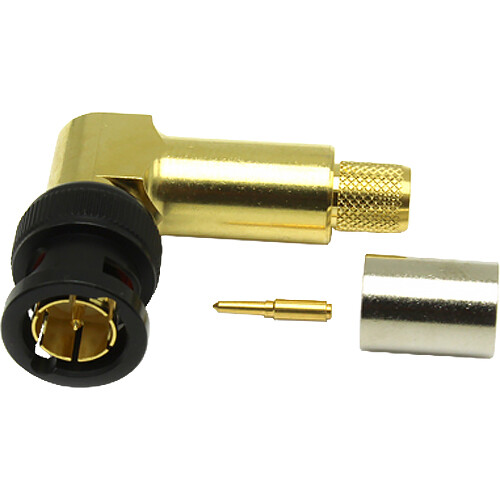

COAX Connectors BNC Korus 12G Right-Angle Crimp/Crimp Plug for Belden 1694A/1694F

This BNC Korus 12G Right-Angle Crimp/Crimp Plug for Belden 1694A/1694F from COAX Connectors is suitable for use at frequencies of 12 GHz. Featuring a black finished body and gold-plated inner and outer contact. Supporting 12G signals, it is compatible with Belden 1694A/1694F, as well as similar cables in group FC. Both contact and crimp sleeve are annealed to provide a robust and durable termination, and the connector is suitable for 4K/UHD broadcast video applications.

Compatible Cables

• Belden 1694A
• Belden 1694F
• Draka 1.0/4.8 A/F
• Bryant BD SD11
• Image 1000
• Conducfil 13653
• Percon VK7, VK77

Material

• Center contact: brass
• Outer contact: brass
• Insulator: PTFE
• Bayonet cap plating: black
• Centre contact plating: gold
• Outer contact plating: gold

Electrical

• Impedance: 75 ohms
• Frequency range: up to 12 GHz
• Dielectric withstand voltage: 1500 Veff
• Insulation resistance: 5000 Megohms
• Return loss: 11 dB @ 12 GHz

Mechanical

• Design standard: IEC 61169-8
• RoHS 3 compliant: yes
• Centre contact termination: crimp
• Outer contact termination: crimp
• Mating cycles: 500
• Contact retention: 10 N min
• Cable retention: 120 N min
• Mating force: 13.6 N max
• Un-coupling force: 13.6 N max

Environmental

• Operating temperature: -67 to 311°F
• IP rating (mated): IP64
