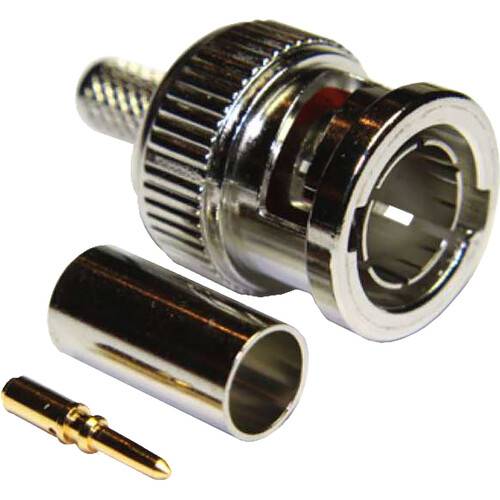

COAX Connectors BNC High-Definition Crimp/Crimp Plug for Belden 1855A (100-Pack)

This 100-pack of BNC High-Definition Crimp/Crimp Plug for Belden 1855A connectors from COAX Connectors features gold-plated center and nickel-plated outer contacts. Supporting 3G signals, it is compatible with Belden 1855A, as well as similar cables in group EF. Typical applications are broadcast, including Ultra-High Definition (4K), telecom, instrumentation, security, mil/aero, and many others.

• Belden 1855A
• Belden 1865A
• Belden 4855ANH
• Belden 4855P
• Belden 4855R
• Canare L-2.5CFB
• Canare L-2.5CHD

• Center contact: brass
• Outer contact: brass
• Insulator: PTFE
• Bayonet cap: zinc
• Center contact plating: gold
• Outer contact plating: nickel

• Impedance: 75 Ohms
• Frequency Range: up to 4.5 GHz
• Dielectric withstand voltage: 1500 Veff
• Insulation resistance: 5000 Megohms
• Return Loss: -12 dB @ 6 GHz

• Design standard: IEC 61169-8
• RoHS3 compliant: yes
• Center contact termination: crimp
• Outer contact termination: crimp
• Mating cycles: 500
• Contact retention: 10N min
• Cable retention: 100N min
• Weight: 0.03 lb
• Mating force: 13.6N max
• Un-Coupling force: 13.6N max

• Operating temperature: -67 to 311°F
• IP rating (mated): IP64
