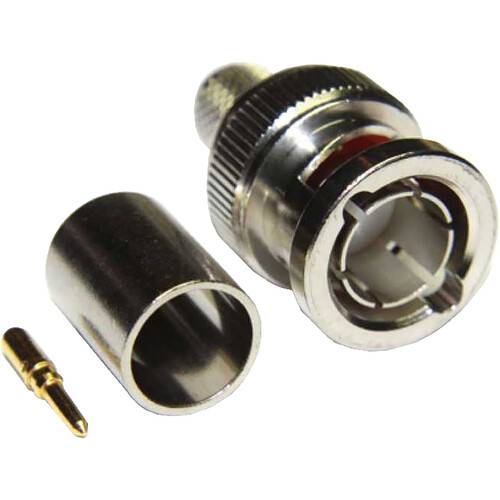

COAX Connectors BNC High-Definition Crimp/Crimp Plug for Belden 1694A/1694F (100-Pack)

This 100-pack of BNC High-Definition Crimp/Crimp Plug for Belden 1694A/1694F connectors from COAX Connectors features gold-plated center and nickel-plated outer contacts. The connector has an impedance of 75 ohms and supports signals with frequencies up to 12 GHz, it is compatible with Belden 1694A/1694F as well as similar cables in group FC. Typical applications are broadcast, including Ultrahigh Definition (4K), telecom, instrumentation, security, mil/aero, and many others.

• 70082NH
• Belcom EventSeries HD1000 LSZH FireFighter
• Belden 1694A
• Belden 1694F
• Belden 1695A
• Belden 4694ANH
• Belden 4694F
• Belden 4694P
• Belden 4694R
• Belden H124Co2
• Bryant BD SD10F
• Bryant BD SD11
• Canare L-5CFB
• Canare L-5CHD
• Canford SDV-F
• Canford SDV-L
• Canford SDV-L-LFH
• Canford SDV-L-RR
• Canford SDV-L-SR
• Canford SDV-L-X-LFH
• Canford SDV-XF
• Conducfil 13653
• Draka 1.0/4.8 AF
• Draka HD PRO 1.0/4.8 AF
• Draka HD PRO FLEX 1.0L/4.8 AF Dz
• Image 1000
• Percon VK7
• Percon VK70 ENH
• Percon VK77
• TACHII TCX-4CHD

• Center contact: brass
• Outer contact: brass
• Insulator: PTFE
• Bayonet cap: zinc
• Center contact plating: gold
• Outer contact plating: nickel

• Impedance: 75 ohms
• Frequency range: up to 4.5 GHz
• Dielectric withstand voltage: 1500 Veff
• Insulation resistance: 5000 Megohms
• Return loss: -12 dB @ 6 GHz

• Design standard: IEC 61169-8
• RoHS3 compliant: yes
• Center contact termination: crimp
• Outer contact termination: crimp
• Mating cycles: 500
• Contact retention: 10 N min
• Cable retention: 100 N min
• Mating force: 13.6 N max
• Un-coupling force: 13.6 N max

• Operating temperature: -67 to 311°F
• IP rating (mated): IP64
