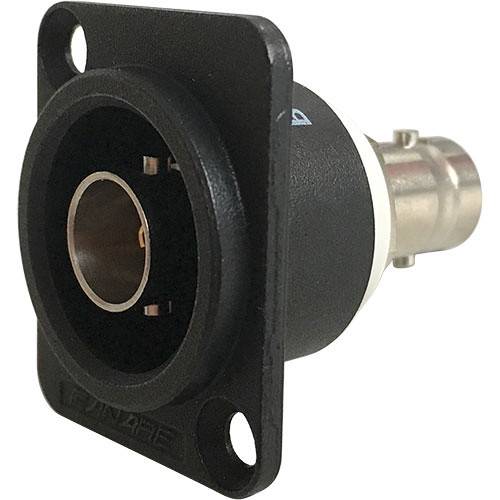

Canare BCJ-JRUDBK 75-Ohm Panel Flush-Mount BNC Female to BNC Female Receptacle for 12G -SDI (Black)

Designed specifically for 12G-SDI / 4K applications, the black Canare BCJ-JRUDBK is a 75-Ohm BNC female to BNC female flush-mount receptacle designed to provide feed-trough patching connectivity for technicians and system integrators in broadcast, television, video, and audio studios.

Note:

Use Canare CANBET12 extraction tool to insert and extract all Canare BNC crimp plugs from recessed or standoff BNC receptacles and DVJ digital video jacks

• 75-Ohm impedance
• Minimal return loss of 15 dB at 12 GHz
• Ideal for use in 12G-SDI video installations
• Neutrik D-Series black flange
• Beryllium/copper is used on center contact for superior spring characteristics
• Gold-plated finish on center contact

• Compliant with SMPTE, HD-SDI ST292, 3G-SDI ST424, 6G-SDI ST2081-1, 12G-SDI ST2082-1
• UHD/SDI, HD/SDI digital video
• UHD upgrades
• NTSC analog
• Test equipment
• Satellite headends
• Remote applications
