Cambo ACTUS-B View Camera Body with Bayonet Kit (Sony E)

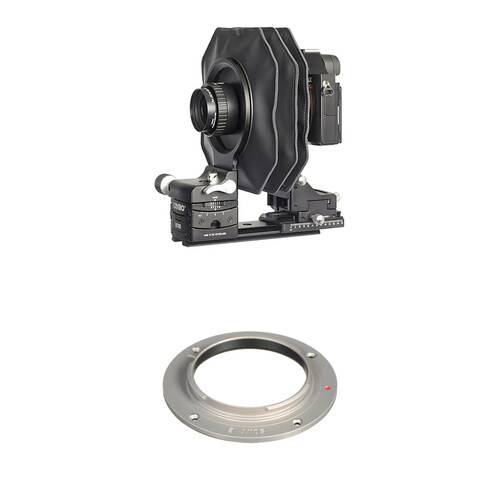

Providing the basics needed for converting your Sony E-mount mirrorless camera into a large format setup, the ACTUS-B View Camera Body with Bayonet Kit from Fotohaus Klinger pairs the view camera with bellows and monorail with a Sony E-mount bayonet kit.

Offering extensive perspective and focus control along with the convenience of working with your digital camera, the black ACTUS-B View Camera Body from Cambo effectively transforms your DSLR or mirrorless camera into a digital view camera. As the core component within a modular system, this view camera body serves as the primary piece from which you can pair a variety of digital cameras and lenses to reap the benefits of geared camera movements for correcting perspective distortions, achieving an extended depth of field, or producing creative selective focus effects. While resembling traditional large format view cameras in function, the ACTUS system also echoes the compact form factor of the digital cameras it is designed to be paired with and is optimized for use in both the studio as well as on location.

This view camera body is delivered with a 6.1" monorail as well as a 4.9" bellows to permit working with a variety of lens and camera types. The monorail is designed to fit within the Arca-Swiss style quick release system for easy mounting to a tripod, and is also fitted with both 3/8"-16 and 1/4"-20 mounts for attaching quick release plates. Optional lensplates and bayonet mounting kits can be added depending on your desired lens and camera combination, and the monorail and bellows is also interchangeable with optional wide-angle and longer versions of each.

A full system of movements offers extensive control over perspective and focusing settings. Geared on-axis tilt and swing movements are performed on the front standard and the rear standard permits geared rise/fall movements and quick slide shift movements:

The swing and tilt movements of the front standard rotate about the optical axis in order to avoid having to re-compose or re-focus after each movement is applied.

Additionally, besides the standard included bellows and monorail, a variety of optional bellows and monorails are available for wide-angle and close-focusing/macro shooting applications.

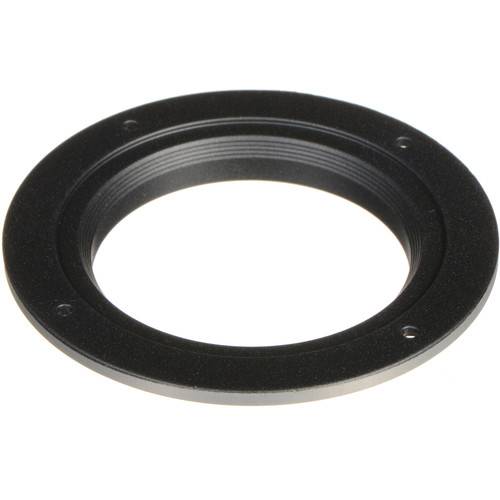

This AC-786 ACTUS Bayonet Kit from Cambo allows you to attach a Sony E-mount body to the ACTUS View Camera. This is included in the ACTUS-B6 and ACTUS-T7 sets and is offered here as a replacement or spare.

Camera Type View camera body for DSLR or mirrorless capture Lens Mount Compatible with optional ACTUS-B lensplates Camera Mount Compatible with optional ACTUS camera bayonet mounts Monorail Length 6.1" / 155 mm (standard AC-315 monorail) Bellows Extension 4.9" / 125 mm (standard AC-210 bellows) Focusing System Quick slide adjustment, geared fine-focus adjustment Up to 4.9" / 125 mm travel with Sony E mount
