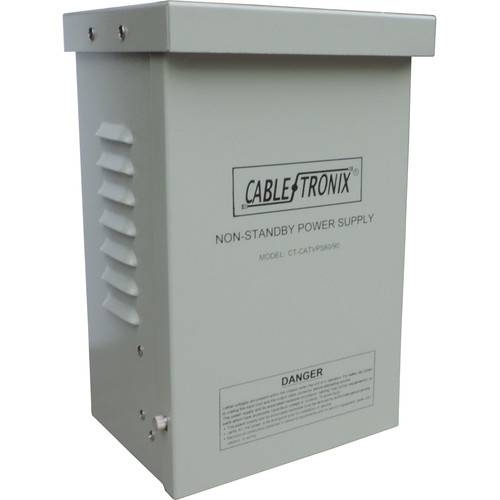

CableTronix 60/90 VAC CATV Power Supply

The CableTronix 60/90 VAC CATV Power Supply is designed to provide conditioned power to remote active devices over a hardline CATV cable distribution plant. It is designed to work with either 120 or 220 VAC input voltage with 60 or 90 VAC selectable output. The power supply's enclosure is built of weather-resistant and powder-coated aluminum for use in outdoor environments. The included installation bracket allows the unit to be easily mounted on a flat vertical surface or on a wooden or concrete pole.

Constant voltage ferroresonant transformer

Fully regulated AC power output

Input and output surge protection

Current limited output and short­-circuit protection

Automatic restart upon removal of short

Field selectable output voltages

Powder-coated enclosure for outdoor applications

Supports pole and wall mount installations

5/8" female output connection

LED indicator
