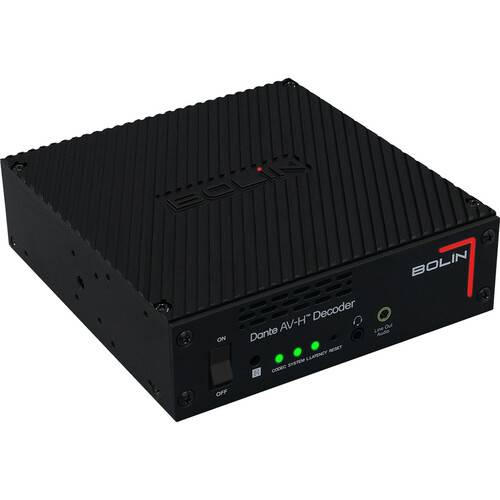

Bolin Technology Dante AV-H Decoder

Send Dante AV audio and video to your displays with this Dante AV-H Decoder from Bolin Technology. The EG40DH features high-bandwidth Dante AV Ethernet input and HDMI 2.0 and 12G-SDI output for monitors. Both HDMI and 12G-SDI output ports support up to UHD 4K60 video for demanding conference room, house of worship, live event, or education applications.

The decoder features full Dante support, including discovery, management via Dante Controller software, and it easily fits into your Dante AV network with its plug-and-play setup. It supports all Bolin Dante AV-H PTZ cameras, scaling from 720p to UHD 4K60, and transport in H.264/AVC and H.265/HEVC formats. The compact design allows you to mount it into a standard 1 RU rack, and it can be powered using the included power adapter or via your PoE+ network.

• Supports up to 4K60 resolution
• Dante AV-H supported with standard HEVC, and FAST HEVC (ultralow latency)
• Fully compatible with Dante ecosystem hardware and software
• HDMI 2.0 + 12G-SDI video output
• Dual output between HDMI and SDI
• Video upscalable from 720p up to UHD 4K60 max
• All video with audio embedded
• Audio intercom with front-end device
• On-screen character generator
• Firmware upgrade via IP
• PoE+ and 12 VDC power input

The EG40DH outputs up to UHD 4K60 video with low latency and very low bandwidth (±50 Mb/s) across the Dante AV network, giving customers additional flexibility and network management options.

Full compatibility with all Dante AV-H cameras and encoders and all Dante-enabled mixers, audio devices, and encoders, with support for up to eight channels of audio embedded in the video output.

Support for simultaneous HDMI 2.0 and 12G-SDI outputs to monitors or Vision Mixers.

There is FPGA decoding support for RTSP, SRT, MPEGTS IP streams, HEVC, and FAST HEVC, making it compatible with Bolin's FAST HEVC cameras, decoders, and all standard HEVC streams.

The TRRS Audio intercom port on the front provides support for live production intercom.

Device discovery, management, routing, monitoring, and firmware upgrades are enabled through the familiar and reliable Dante Controller software, providing a simple, plug-and-play experience.

Upscales lower resolution HDMI and SDI video to maximum from 720p up to UHD 4K60 output. Downscaling is available.

Power the unit via PoE+ (Power over Ethernet) and 12 VDC power input (a power adapter is supplied).

The small, 1/3 RU form factor offers a variety of horizontal and vertical mounting options, including rackmount, DIN rail, panel and wall mounts, VESA mounts, and tripod support.

EAN: 6973775121819
