Blustream SM11EARC-8K 8K HDMI 2.1 Signal Manager with eARC

Ensure your HDMI signals are compatible when connecting varied equipment types with the SM11EARC-8K 8K HDMI 2.1 Signal Manager with eARC from Blustream. This signal manager provides adjustments between HDMI video equipment, providing solutions for common issues that arise when working with resolutions up to 8K, such as HDMI compatibility, HDCP 2.3, EDID, clock stretching, and handshake issues.

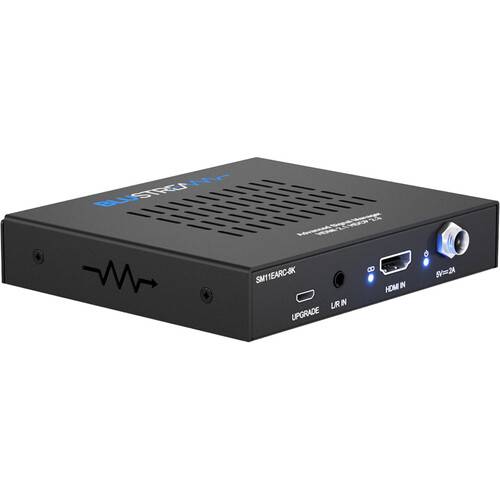

The compact unit features an HDMI input, an HDMI output, and an ARC/eARC HDMI output. It also allows you to embed analog audio using a 3.5mm analog audio input, and it can de-embed audio from your HDMI signal using 3.5mm analog and TOSLINK optical outputs.

• Can help to solve most HDMI EDID, HDCP, compatibility, and handshaking issues
• Supports HDMI 2.1 40 Gb/s specification, including HDR
• Supports up to 8K60 YCbCr 4:2:0 10-bit, 8K30 RGB/YCbCr 4:4:4 10-bit, or 4K120 RGB/YCbCr 4:4:4 10-bit
• Supports ALLM (Auto Low-Latency Mode) and VRR (Variable Refresh Rate)
• Supports passthrough of all known HDMI audio formats, including Dolby Atmos, Dolby TrueHD, Dolby Atmos, Dolby Digital Plus, and DTS-HD Master
• Can be configured to work as either a HDMI audio de-embedder, or audio embedder
• Independent audio only HDMI output for ARC/eARC audio breakout
• HDMI audio de-embedded to both analog L/R audio and optical digital outputs concurrently (analog audio supports 2-channel PCM only)
• Embed analog L/R 2-channel audio input onto HDMI output
• Extract audio with or without an actual display connected (SM11EARC-8K acts as HDMI end-point)
• HDCP 2.3 compliant
• Advanced EDID management

EAN: 9340242004772
