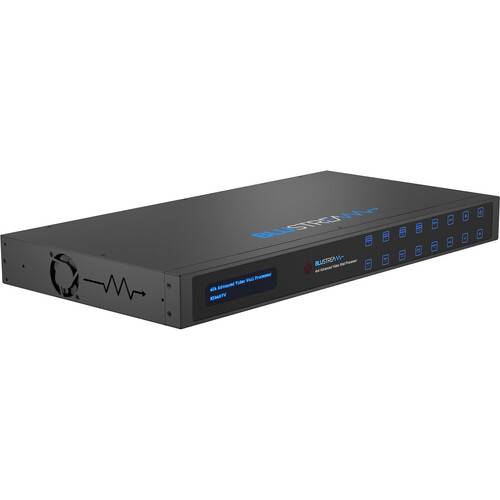

Blustream MX44AVW 4x4 Advanced Video Wall Processor

Distribute audio and video sources to various HDMI displays MX44AVW 4x4 Advanced Video Wall Processor from Blustream. The matrix features four HDMI 2.0 inputs and four HDMI 2.0 outputs to create a matrix of different sources and destinations. The unit also can de-embed analog audio via L/R RCA outputs and digital audio via the optical S/PDIF outputs.

Ideal for video walls, video matrices, retail, and digital signage systems, this matrix allows for reliable, versatile connectivity. Control over the kit can be achieved via front-panel push buttons, IR remote, RS-232, and web interface.

• Advanced 4K HDMI 2.0 multi-purpose high-speed video processor, supporting matrix, multiview, and video wall function
• Advanced video wall configuration, allowing individual overlap and rotation of panels
• Multiview mode supports PIP, PBP, POP, Dual, Triple, and Quad window layouts with pre-defined and customizable configurations
• Seamless video switching
• HDMI 2.0 UHD 4K60 4:4:4 18 Gb/s specification, including HDR
• Supports all industry standard video resolutions including VGA to WUXGA and 480i to 4K
• Supports all known HDMI audio formats, including Dolby Atmos, Dolby TrueHD, Dolby Digital Plus, and DTS-HD Master Audio transmission
• HDMI audio breakout to analog L/R audio and optical digital outputs concurrently
• IR routing
• Control via front panel, IR, RS-232, TCP/IP, and web GUI
• Supplied with Blustream 5V IR receiver and remote control
• HDCP 2.2 compliant
• Advanced EDID management
