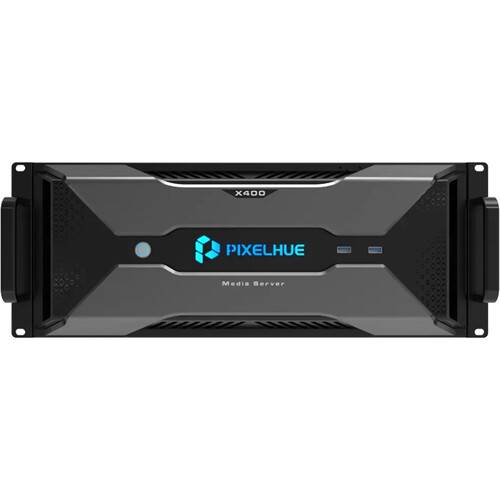

Blizzard Pixelhue X400 Media Server with 4K Input Card & Pilot MS3 Key

The Pixelhue X400 Media Server with 4K Input Card & Pilot MS3 Key from Blizzard is a versatile, modular media server with a high-end processor and graphics card that is ideal for distributing source video for live events, stages, virtual production, conferences, and more. The server can be upgraded with different input and output cards to suit your installation needs.

The X400 supports up to six 4K or 24 2K outputs, making it ideal for large-scale events. It supports up to 8K60 video decoding. The system features two input card slots and six output card slots, supporting up to two 4K input cards and four 4K output cards simultaneously. This design not only enables the selection of various I/O modules to meet specific visual system requirements but also simplifies field deployment and future upgrades.

• 4 RU rack-mountable chassis
• Includes a 4K input card with dual HDMI 1.4 inputs supporting up to DCI 4K30
• 8K or multiple 4K hardware decoding and rendering for smooth playback and high-quality output
• Plug-in and modular design for higher system stability
• Frame sync technology for synchronized and smooth display
• Seamless primary and backup device switching safeguards your on-site operation
• Infinite device cascading, synchronized by genlock
• EDID lock, ensuring no jump of connector resolution and display sequence
• Intelligent thermal solution
• Running status indication and fault alarm on front panel display
• High-quality XLR audio inputs and outputs
• Central control via TCP/UDP protocol
• Industrial ruggedized design

• 11th Gen Intel Core Processor
• 64GB DDR4 RAM
• System disk: Samsung M.2 SSD 250GB
• Storage disk: Samsung M.2 SSD 1TB
• Graphics card: NVIDIA RTX A4000
• Windows 10 IoT Enterprise LTSC

• Includes Pilot MS3 software license, preinstalled
• Playback and real-time editing of all categories of media, including videos, pictures, audio, web pages, acquisition devices and NDI inputs
• Various playback modes, including single program, single media, media collection, cross-program media and jump playback
• Unlimited layers and unlimited programs
• Powerful slices for diversified visual applications
• Visualized management of slices, programs, playback and input sources
• Flexible mosaic realizes your creative ideas
• Auto preview and preview editing of next program
• Media optimization for better media performance
• Media image quality adjustment
• Media mirroring, stretching, cropping supported
• Crossfade and cut effects on program switching
• Decoding of various mainstream video formats
• Output mapping and markings for clear screen and connector correspondence
• Automatic software startup and program playback
• Project file management and packaging

I/O cards are available separately. Options include:

• 4K input card with two HDMI 1.4 inputs
• 2K input card with DVI and 3G-SDI inputs
• 4K output card with HDMI 2.0 and DisplayPort 1.2 outputs
• 2K output card with four HDMI 1.3 outputs
