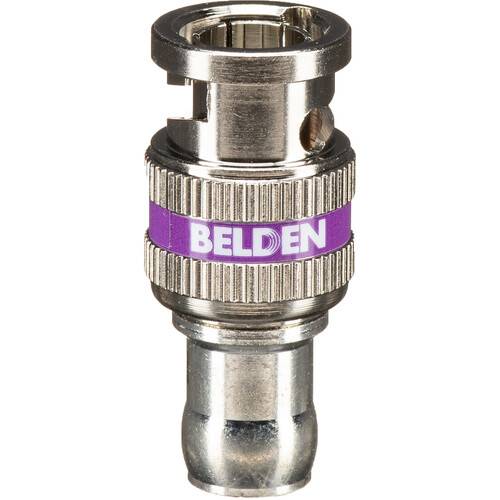

Belden 6 GHz Mini RG59 BNC Compression Connector (50-Pack)

This bundle packages together 50 Belden 6 GHz Mini RG59 BNC Compression Connectors, which use compression termination for attachment to compatible cables in indoor spaces. The housing is made from brass with nickel plating, while the electrical conductor is brass with gold plating. This design combined with 360° compression rings that deliver a pull strength exceeding 100 lb, results in a durable male connector that can be used over 500 cycles.

Additionally, a violet color-coding ring helps identify compatibility with select cables. The connectors are mini RG59 compliant and suitable for applications with HD-SDI, SMPTE 2081-1 6 Gb/s UHD, SMPTE 424M 3 Gb/s 1080p, and digital and analog video signals. Compatible compression and strip tools include the Belden CPLCRBC-BR and PS59/6/RGB.

Indoor use connectors with brass/nickel-plated housing and brass/gold-plated conductor

Suitable for HD-SDI, SMPTE 2081-1 6 Gb/s UHD, SMPTE 424M 3 Gb/s 1080p, and digital and analog video signals

360° compression rings

Over 100 lb pull strength

500-cycle use

Color-coding ring for easier identification of compatible cables

75-ohm impedance

500-cycle durability
