Offered as a 50-pack, the Belden 12 GHz Mini RG59 BNC Compression Connector uses compression termination for attachment to 4855R mini coax cables in indoor applications. The housing is made from brass with nickel…
Product highlights and buying context

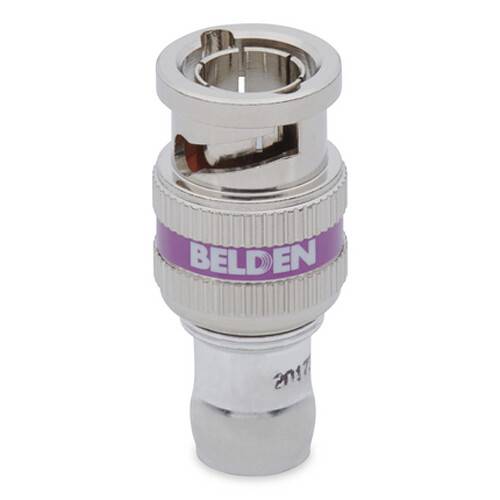

Offered as a 50-pack, the Belden 12 GHz Mini RG59 BNC Compression Connector uses compression termination for attachment to 4855R mini coax cables in indoor applications. The housing is made from brass with nickel plating, while the electrical conductor is brass with gold plating. The connectors are suitable for use with signals including HD-SDI, UHD, SMPTE 2082-1 12 Gb/s UHDTV, SMPTE 2081-1 6 Gb/s UHDTV, and SMPTE 424M 3 Gb/s HD-SDI 1080p signals. This series is easily identified by its violet color band.
A 360-degree, floating-pin basket at the back of the connector makes insertion of the cable center conductor accurate and easy.
Internal 360-degree compression rings eliminate ingress and egress from the back of the connector.
