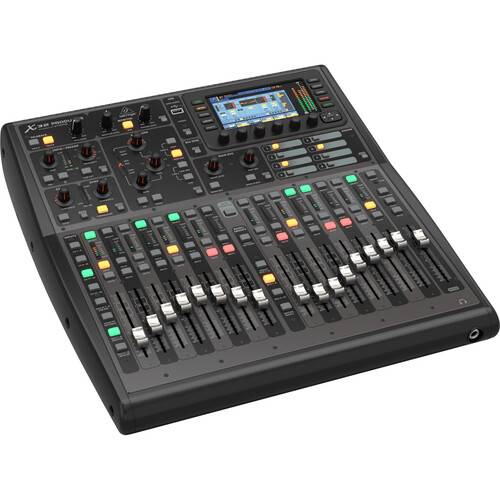

Behringer X32 PRODUCER 16 x 8 Rack-Mountable Digital Mixing Console

Ideal for professional live and recording applications, the Behringer X32 PRODUCER is a 40-channel, 25-bus digital mixing console that provides a wealth of features in a compact design. The mixer features 16 fully programmable MIDAS-designed mic preamps. The main outputs, mix busses, and independent matrix mix busses all have 6-band parametric EQs and integrated dynamics processing for excellent sonic tailoring capabilities.

The X32 PRODUCER also has 8 analog XLR outputs as well as 6 balanced line-level 1/4" Aux inputs and outputs and two 1/4" headphone jacks. The talkback section allows you to communicate with an external mic. The mixer also has a pair of AES50 ports that feature KLARK TEKNIK SuperMAC networking capability for use with 48-channel digital snakes for ultralow jitter and latency. The integrated expansion port ships with a 32 x 32 X-USB USB audio card installed.

• 40-input channel, 25-bus rack-mountable digital mixing console for Studio and Live application
• 16 Midas-designed, fully programmable mic preamps for audiophile sound quality
• 17 Fully automated motorized 100mm faders allow for instant overview, powerful scene management, and DAW control
• 8 XLR outputs plus 6 additional line in/outputs, a phones connector and a talkback section with XLR mic input
• 32 x 32 channel USB 2.0 audio interface, with DAW remote control, emulating HUI and Mackie Control
• iPad and iPhone apps for professional remote operation available free of charge—no host PC required
• High-resolution 5" day-viewable Color TFT for easy viewing of workflow components and parameters
• Main LCR, 6 matrix buses, and all 16 mix buses, each featuring inserts, 6-band parametric EQ's, and full dynamics processing, plus 8 DCA groups and 6 mute groups
• Virtual FX rack featuring 8 true-stereo FX slots include high-end simulations such as Lexicon 480L and PCM70, EMT250, and Quantec QRS, etc.
• 40-bit floating-point DSP features "unlimited" dynamic range with no internal overload and near-zero overall latency for mixing a total of 48 signals on 25 buses
• Powerful scene management for convenient handling of complex productions
• 48-channel Digital Snake ready via AES50 ports, featuring Klark Teknik's SuperMAC networking capability for ultralow jitter and latency
• USB type-A connector, providing file storage and uncompressed stereo recordings plus show presets and system updates
• Dedicated and easy-to-use channel-strip section with direct access controls and graphic user interface for intuitive workflow
• Additional user-definable control section allows to set up shortcuts to your favorite views or parameters
• ULTRANET connectivity for Behringer's P16 Personal Monitoring System
• Networked remote control via Ethernet for show setups with on-screen software editor
• Built-in expansion port for audio interface cards or digital networking bridges
• MIDI In/Out for remote scene recall or controlling other MIDI equipment
• Future firmware updates, including new FX “Plug Ins”, downloadable from behringer.com free of charge
• Rackmount brackets included for ultimate flexibility

With the introduction of a recent X32 version 2.0 firmware, Behringer have not only dramatically enhanced the workflow, but also added all-new capabilities, including "Acoustic Integration" for total connectivity and control of your speaker and In-Ear Monitor (IEM) systems. They completely re-imagined the more than 50 onboard FX "Plug-Ins" and added classic processor examples based on "True Physical Modelling". For even more flexibility, the X32 PRODUCER features swappable expansion cards for connecting to other multi-channel audio networking via USB, ADAT, MADI, and Dante protocols, in addition to the onboard ULTRANET and AES50 connectivity. Above all, the X32 COMPACT puts the power of digital in your hands without compromise.

• X32 PRODUCER serves the user a full complement of 17 long-throw, 100mm motorized servo faders for primary mix control. Working in concert with the 5" TFT Display, the faders serve multiple functions while always keeping you informed.
• Separate fader sections for inputs and groups/buses allow for convenient assignments from inputs to groups/buses.
• With the ability to store up to 100 scenes, X32 PRODUCER’s motorized faders jump to life the moment a scene is recalled.

• The X32 PRODUCER Channel Strip puts the most important channel processing parameters into one section, so that no matter which channel you are working on, the controls are always the same.
• This highly efficient layout stems from BEHRINGER’s decades of console design and input from our users. Optimized control illumination ensures a clear indication of levels or status from any viewing angle.
• Illuminated rotary encoders and switches give you control of preamp settings, frequency shelving, dual dynamics sections as well as multi-mode fully parametric EQ, bus sends, main, mono, and stereo panning.

• X32 PRODUCER’s 5" day-viewable color TFT (Thin-Film Transistor) display shows the setting parameters you need when you need them.
• Selected for its high-contrast performance and outdoor visibility, TFT is ideal for concert and open air festival venues. Flanked by high-precision, context-sensitive tactile encoders, the screen comes to life and immediately reports in high definition all adjustments applied to a wide range of parameters.

• X32 PRODUCER brings the convenience of digital mixing to your Aux and output bus mixes too, thanks to its integrated Sends on Fader feature. This incredible function allows you to build powerful, dedicated sub-mixes for monitor, secondary zone feeds, and much more—all without affecting the front of house mix or levels.
• The X32 PRODUCER allows you to send your choice of signals to any Aux or output bus and then dial in the perfect mix via the channel faders.
• The console remembers where you set the faders and instantly recalls them when you select a bus for quick adjustments.

• DCA (Digitally Controlled Amplifier) groups allow control over several signals at once without actually mixing them into a subgroup bus. X32 PRODUCER’s 8 DCA groups let you control multiple signals via a single fader, such as the entire drum mix, the horn section, or the backup vocalists, etc.
• DCA control affects the FOH mix, while allowing the individual buses to remain unchanged. The result is a customizable workflow that provides maximum flexibility, but still allows individual buses and subgroups to serve the purpose they were intended for, such as zone sends, broadcast feeds, etc.

• Across the X32 PRODUCER you’ll find strategically placed View buttons associated with various functions. These buttons enable immediate access to information about that specific function.
• For instance, if you press the View button in the Equalizer section, information for that channel’s EQ is instantly shown on the main display, providing in-depth editing of all related parameters.
• This direct access to visual fine-tuning gives the engineer a level of control previously available only on consoles costing exponentially more.

• While some digital consoles offer a few user-definable controls, X32 PRODUCER’s Assign section sets a new standard by providing fully customizable controls
• As with channels and buses. Buttons can be defined to toggle parameters on/off, adjust timing of effects by tapping, or jump to specific screen views.
• Rotary encoders with LED collars can be assigned to specific channel parameters, or to additional parameters in the Dynamics section relevant to the current channel selection.

• Legendary 40-year old British company Turbosound, famous for producing some of the world’s best speaker systems, have teamed up with Behringer to seamlessly integrate mixer and speaker systems. We call it “Acoustic Integration”.
• The X32 PRODUCER’s ULTRANET bus allows streaming up to 16-channels of pristine digital aud
