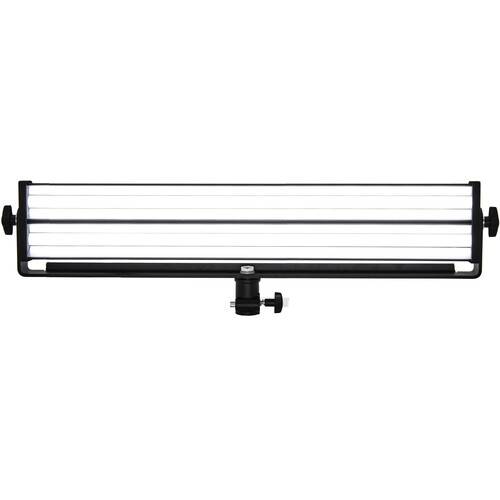

BB&S Lighting Pipeline Reflect 2-Bank (5600K, 2')

Based on their popular 1-inch diameter remote phosphor LED pipes, the 2' long 5600KPipeline Reflect 2-Bank from BB&S raises its own performance bar with the inclusion of two LED Pipes for double the power, inside a reflector with a tilting yoke and a receiver.

The Reflect 2-Bank is designed with the Pipes nested in a polished aluminum reflector with a 2" opening that compresses the angle of illumination to 90° and doubles the output as compared to the standard Reflect fixture. As you might expect with a remote phosphor, the fixture has an impressive TLCI rating of 95, an indicator of high accuracy in color rendering.

The reflector is the core of the fixture's system offering wide latitude of power and control options. It has a sliding mount plate with 1/4" and 3/8" female threads. The unit also has a 3-pin XLR connection that interfaces with an optional controller that has four 40W channels for operating multiple fixtures. The controller also has an onboard DMX and RDM for remote operation from a console, as well as provision for wireless DMX. The controller features precise dimming and a 48V power supply with a powerCON True-1 locking cable for AC power. An optional manual-control dimmer/driver unit, a D-tap cable for 14.4 VDC batteries, and an optional AC power supply are also available.

Fully Outfitted Studio Fixture with Twice the Power of Standard Reflect

The 2-Bank Reflect uses two Pipeline LED tubes to double the power of the standard Reflect fixture, which itself offers double the power of the LED tube alone. The 2-Bank also comes with a tilting yoke with a receiver that makes stand mounting or overhead hanging a snap.

The Reflect System

Pipeline Reflect incorporates a range of superior quality reflectors offering optimal control, and light dispersion spanning a 90° angle with practically no spill. The Reflect System offers double the foot-candle output of the Pipes alone. As with all BB&S fixtures, the versatile Pipeline Reflect feature offers strobe capability when used with the optional BB&S 4-Way Controller.

Outstanding Color Rendering

The Reflect System utilizes the same 95 TLCI-rated remote phosphor 1" diameter LED pipes that the Pipeline system is known for. Reflect housings are made of rigid, polished aluminum with a contoured base. Smart engineering compresses the angle of illumination to double the output compared to Pipes used alone.

Ideal for the Studio

Reflect 2-Bank fixtures are available in 2, 3, 4, 6, and 8' lengths. They are ideal for studio grids or anchor desks. Set designers will appreciate that the housings are black for a clean-looking installation.

Variety of Control Options

Made for customization, Reflect units feature a 3-pin XLR plug to allow you to control the electronic configuration. To plug and play, a fixture can operate with the BB&S 4-Way Controller (which has four 40W channels) with optional wireless DMX or RDM control. All Pipes run off 48V for precise dimming.

Easy Mounting

Optional controllers can be mounted on the wall or ceiling. The 3-pin XLR connector within the fixture results in a cleaner installation.

Optional DMX and Battery power

The Pipeline Reflect is compatible with the 4-way controller with DMX/RDM 512 onboard. Optional batteries can also power the fixture when AC power is unavailable.
