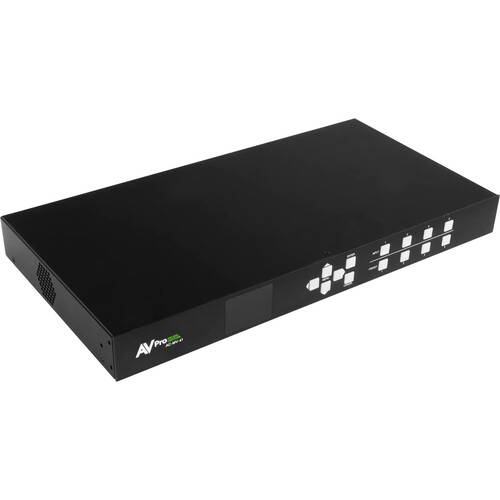

AVPro Edge AC-MV-41 4K HDMI 4x1 Multiviewer

Play up to four separate video sources on a single display with the AC-MV-41 4K HDMI 4x1 Multiviewer from AVPro Edge. Capable of handling a fast 18 Gb/s video bandwidth, the AC-MV-41 is a versatile multiview video processor that supports resolutions up to 4K60 with a 4:4:4 color space, Dolby Vision, HDR10+, and HLG. It works as a standalone device for composite imaging, full-screen, and video wall-style playback.

The unit is compatible with HDMI 2.0 and offers HDCP 2.3 compliance, as well as advanced EDID management. The AC-MV-41 integrates customizable layouts and recallable presets, and it is controllable via LAN or RS-232 using the included 3-pin terminal block.

HDR metadata is stripped away (post loop-out circuitry), and the signal is converted into RGB, enabling mixed dynamic range input sources to be combined by the AC-MV-41 multiviewer for flawless display.

Each HDMI input has a companion HDMI loop output for pass-along integration with additional system devices. The loop-out circuitry is positioned in the signal chain before metadata is stripped away and is preserved for playback on other system displays or another input of the main display.

Whether you are using the classic main picture/keep tabs box in the corner, quad-view with four equally sized windows, or custom layouts featuring window tiling, the AC-MV-41 lets your TV remote control take a well-earned time out.

Compliant with HDMI 2.0 and HDCP 2.3 on all four inputs and the solo HDMI output, sources may include SD, HD, and UHD up to 4K60 and safely be combined into a single image for playback on the dedicated display. The advanced EDID management eliminates interface headaches, so systems function reliably with complete repeatability.

The API is robustly fortified, and full command is capable by nearly every major third-party overcontrol provider.
