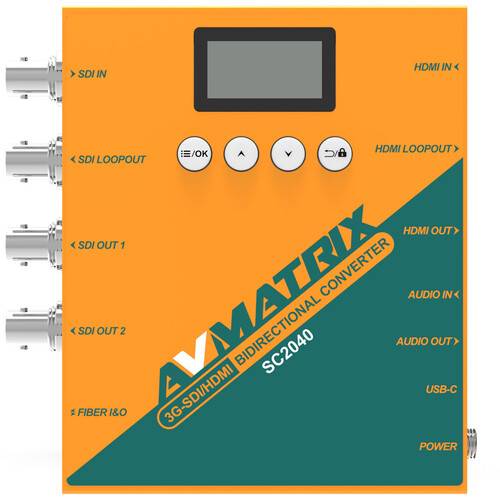

AVMATRIX 3G-SDI/HDMI Bidirectional Converter

The 3G-SDI/HDMI Bidirectional Converter from AVMATRIX is an ultracompact, bidirectional 3G-SDI / HDMI signal converter in a robust metal housing designed for conversion functions in AV, broadcast, and live event productions. This rugged unit provides multiple format conversion, scaling, and frame rate conversion modes with audio embedding/de-embedding, test tones/pattern generators, and image orientation control.

• Bidirectional 3G-SDI<—>HDMI conversion
• Multiple conversion operation modes
• Upscaling/downscaling
• Frame rate conversion
• SFP slot for optional fiber module for transceiver transmission up to 12.4 miles
• Audio embedding and de-embedding via 3.5mm analog audio I/O
• Built-in test pattern generator with 23 patterns
• Built-in audio tone generator with left/right test tones and routing diagnosis
• Flexible image orientation control with horizontal/vertical image flipping
• Status display with intuitive operation
• Dual power supply option via USB-C and coaxial DC inputs

• Broadcast
• Live events
• House of worship
• Education
• Healthcare

EAN: 6971118003594
